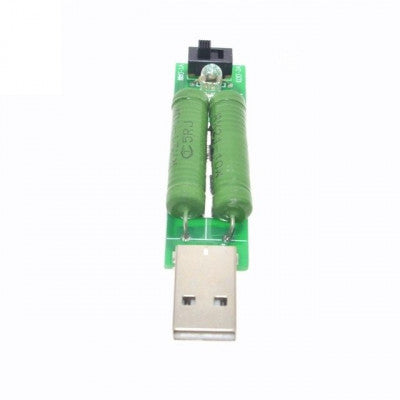

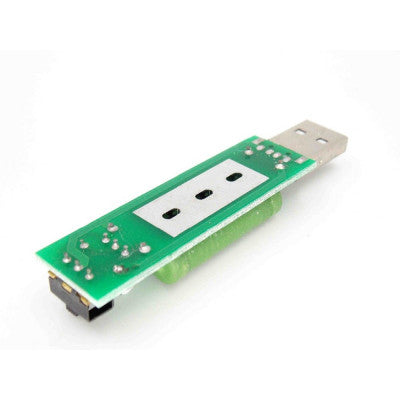

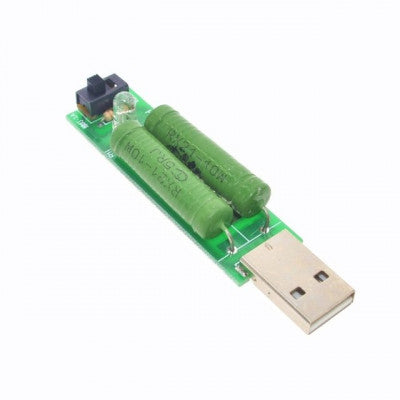

USB Mini Discharge Load Resistor 2A/1A
USB mini discharge load resistor for testing charger or mobile power supply output.
- Rated Power: 5 to 10W
- Type: Fixed Resistor
- USB Type: Type-A
- PCB Size (L x W) mm: 58 x 18
- Height (mm): 10
- Weight (gm): 14
Features:
- Toggle switch for 1A and 2A current discharge
- Green LED for 1A, red LED for 2A
- Enhanced cooling function with large area copper
- True 5 ohm winding resistance for accurate test results
Function switch: When your power supply maximum output is 1A, switch to 1A file for testing; when output is 2A or above, switch to 2A file.
CAUTION:
The loader may produce very high temperature, use for short periods to avoid damage. Keep away from flammable materials.
Initial use may result in white smoke and odor due to high temperature, this is normal and will disappear with use.
Package Includes: 1 x USB mini discharge load resistor 2A/1A.
* Images are for illustration only; actual product may vary.
