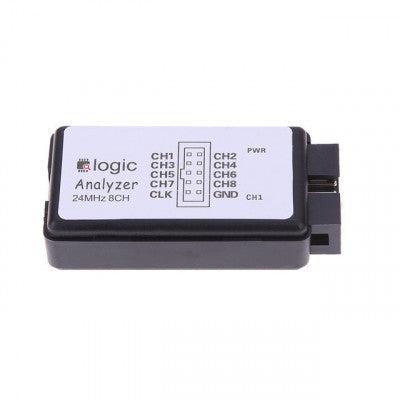

USB Logic Analyze 24M 8CH
A very affordable and useful debugging tool for digital signal analysis.
- Input Supply Voltage (VDC): 0 ~ 5.5
- Threshold Voltage (V): 1.5
- Sampling Rate: Adjustable
- Dupont Cable Length (cm): 20
- USB Cable Length (cm): 50
- Length (mm): 54
- Width (mm): 27
- Height (mm): 15
- Weight (gm): 55
Top Features:
- 8 channels USB logic analyzer
- 24Mhz sampling frequency

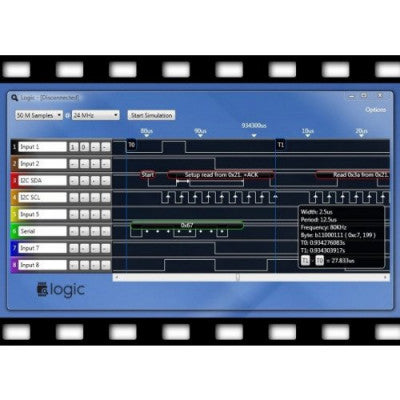

- Can analyze UART, IIC, and SPI automatically
- Great for MCU, ARM system, and FPGA development
The USB Logic Analyze 24M 8CH is a budget-friendly and efficient tool for analyzing digital signals. With a voltage range of 0V to 5.5V and a threshold voltage of 1.5V, this tool is perfect for debugging UART, IIC, SPI, and other interfaces. It offers a sampling rate of 24MHz and can automatically analyze various standard protocols.
Whether you are working on single-chip development, ARM system development, or FPGA development, this tool is highly recommended. The USB Logic Analyze 24M 8CH comes with logical light indication and features USB power supply. It is compact and easy to use, making it ideal for monitoring, analyzing, and debugging digital circuits.

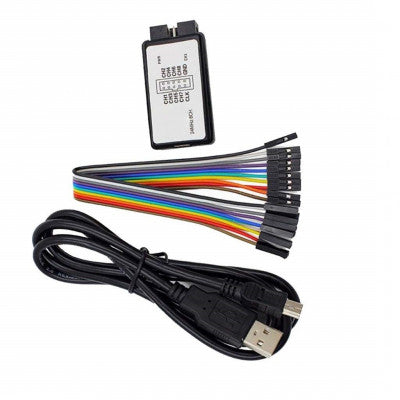

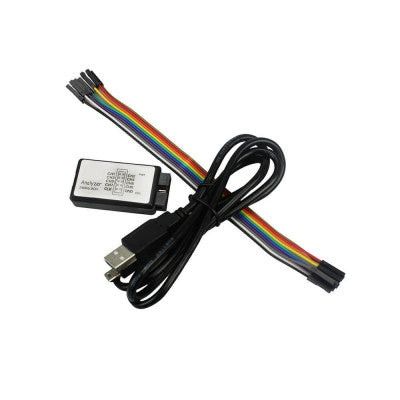

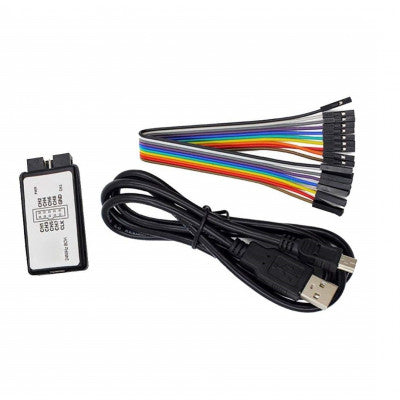

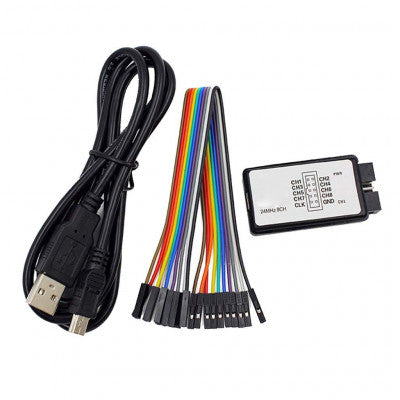

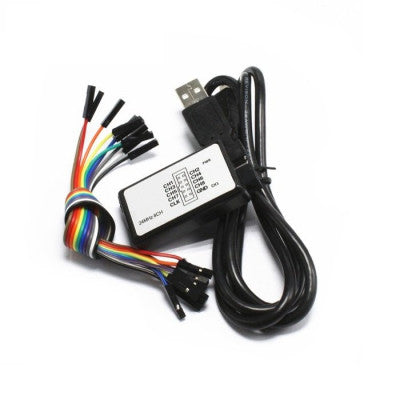

Package Includes:
- 1 x USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP debug tool
- 1 x USB Connecting Cable
- 1 x 10-Point Multicolor Dupont cable
*Images are for illustration only; actual product may vary.
