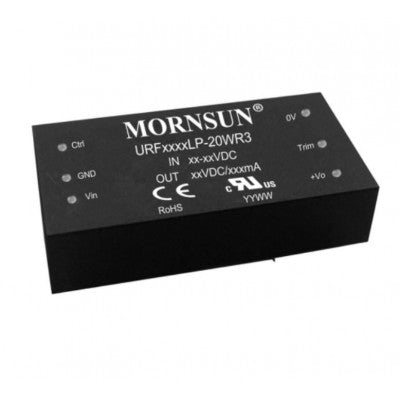

URF2412LP-20WR3 Isolated 20W DC-DC Converter
Efficient and versatile 20W converter with wide input voltage range
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: 12V
- Output Current: 1667mA
- Wattage: 20W
- Isolation: 3kVDC
- Package: DIP
Top Features:
- Wide 4:1 input voltage range
- High efficiency up to 89%
- No-load power consumption as low as 0.12W
- Operating ambient temperature range: -40°C to +85°C
URF2412LP-20WR3 series are isolated 20W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 89%, 3000VDC input to output isolation, operating ambient temperature of -40°C to +85°C, input under-voltage protection, output short circuit, over-voltage, and over-current protection. The products meet CLASS A of CISPR32/EN55032 EMI standards. Optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection. They are widely used in applications requiring ultra-wide input voltage and high isolation, such as the electrical power industry, data transmission, battery-powered devices, telecommunication, distributed power systems, hybrid module system, remote control systems, industrial robotics, etc.
*Images are for illustration only; actual product may vary.
