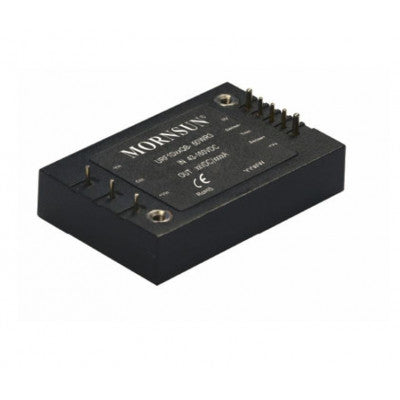

URF1D24QB-50WR3
A high-performance DC-DC converter for railway applications
- Input Voltage Range: 43-160V
- Nominal Voltage: 110V
- Output Voltage: 24V
- Output Current: 2083/0mA
- Wattage: 50W
- Isolation: 3kVAC
- Package: Horizontal (DIP)
Top Features:
- Ultra-wide input voltage range: 43-160VDC
- High efficiency up to 89%
- Input under-voltage protection
- Output over-voltage, short-circuit, over-current, over-temperature protection
URF1D24QB-50WR3 is a high-performance product specifically designed for a variety of railway applications. The DC-DC converters feature 100W output power with no requirement for minimum load, wide input voltage from 43-160VDC, and allowing operating temperature as high as 105?. The products also provide input under-voltage protection, output over-voltage, short-circuit and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation and output voltage trim adjustment. EN50155 approved and they are widely used in railway systems and associated equipment.
