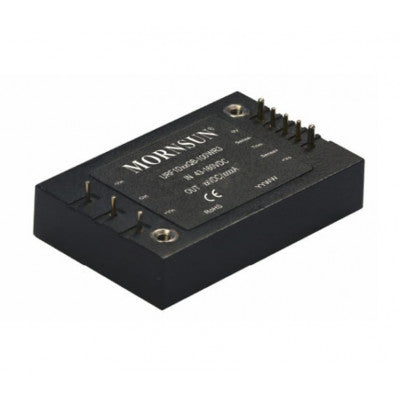

URF1D24QB-100WR3
A high-performance DC-DC converter for railway applications
- Input Voltage Range: 43-160V
- Nominal Voltage: 110V
- Output Voltage: 24V
- Output Current: 4167/0mA
- Wattage: 100W
- Isolation: 3kVAC
- Package: Horizontal (DIP)
Top Features:
- Ultra-wide input voltage range: 43-160VDC
- High efficiency up to 91%
- Input under-voltage protection
- Output over-voltage, short-circuit, over-current, over-temperature protection
The URF1D24QB-100WR3 is a high-performance DC-DC converter designed for railway applications. It features a 100W output power with no minimum load requirement and a wide input voltage range from 43-160VDC. The converter can operate at temperatures as high as 105?. It also provides various protections such as input under-voltage, output over-voltage, short-circuit, and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation, and output voltage trim adjustment. The product is EN50155 approved, making it suitable for use in railway systems and associated equipment.
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
