URF1D05QB-100WR3
A high-performance DC-DC converter for railway applications.
- Input Voltage Range: 43-160V
- Nominal Voltage: 110V
- Output Voltage: 5V
- Output Current: 20A
- Wattage: 100W
- Isolation: 3kVAC
- Package: Horizontal (DIP)
Features:
- Ultra-wide input voltage range: 43-160VDC
- High efficiency up to 91%
- Low no-load power consumption
- Operating ambient temperature range: -40? to +105?
The URF1D05QB-100WR3 is a high-performance product designed for various railway applications. It features 100W output power with no minimum load requirement and a wide input voltage range from 43-160VDC. The converter can operate at temperatures as high as 105? and provides various protections such as input under-voltage, output over-voltage, short-circuit, and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation, and output voltage trim adjustment. EN50155 approved, this product is widely used in railway systems and associated equipment.
Package Includes:

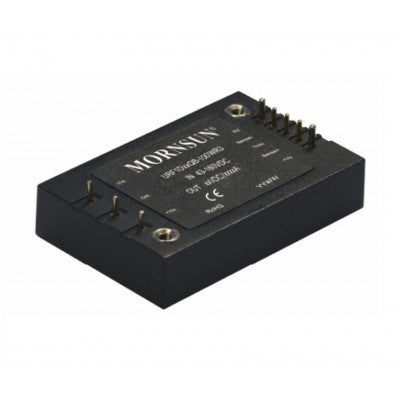

- 1 x URF1D05QB-100WR3 Mornsun 110V to 5V DC-DC Converter 100W Power Supply Module - Horizontal DIP Package
* Images are for illustration only; actual product may vary.
