URB4815YMD-10WR3 Series Isolated 10W DC-DC Converter
Isolated 10W DC-DC converter with ultra-wide 4:1 input voltage and high efficiency
- Input Voltage Range: 18-75V
- Nominal Voltage: 48V
- Output Voltage: 15V
- Output Current: 667/0mA
- Wattage: 10W
- Isolation: 1.5kVDC
- Package: Horizontal (DIP)
Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- I/O isolation test voltage 1.5kVDC
The URB4815YMD-10WR3 series isolated 10W DC-DC converter products feature an ultra-wide 4:1 input voltage with efficiencies of up to 88%. They provide 1500VDC input to output isolation and operate in an ambient temperature range of -40°C to +85°C. These converters also offer input under-voltage protection, output short-circuit, over-current, and over-voltage protection. They meet CLASS A of CISPR32/EN55032 EMI standards without the need for external components. Optional packages are available for chassis or DIN-rail mounting (A2S, A4S), with additional input reverse polarity protection. Widely used in industrial control, electric power, instruments, communication, and railway applications.
Package Includes:

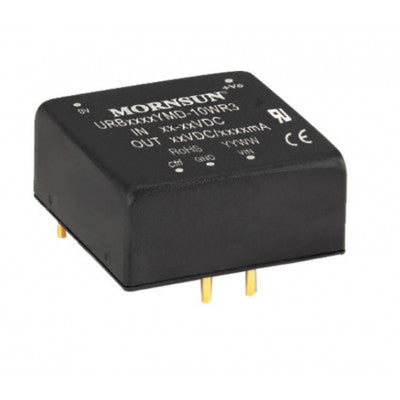

- 1 x URB4815YMD-10WR3 Mornsun 48V to 15V DC-DC Converter 10W Power Supply Module - Horizontal DIP Package
Images are for illustration only; actual product may vary.
