URB4805ZP-6WR3 Isolated 6W DC-DC Converter
Isolated 6W DC-DC converter with ultra-wide input voltage range and multiple protections
- Input Voltage Range: 9-36VDC (24VDC input), 18-75VDC (48VDC input)
- Input to Output Isolation: 1500VDC
- Protections: Input under-voltage, output over-voltage, short-circuit, over-current
- EMI Standards: CISPR32/EN55032 CLASS A
Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Operating temperature range: -40°C to +85°C
Widely used in industrial control, electric power, instruments, communication, and railway applications.
Specifications:
- I/p Voltage Range: 18-75V
- Nominal Voltage: 48V
- O/p Voltage: 5V
- O/p Current: 1200/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Package Includes:

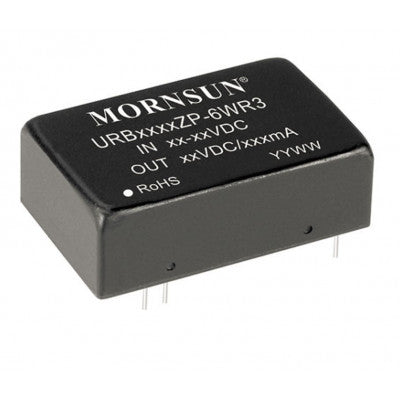

- 1 x URB4805ZP-6WR3 Mornsun 48V to 5V DC-DC Converter 6W Power Supply Module - DIP Package
Images are for illustration only; actual product may vary.
