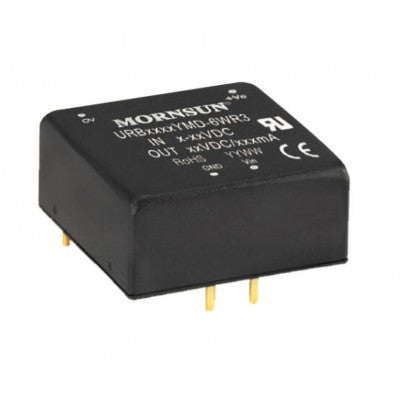

URB4805YMD-6WR3 Isolated 20W DC-DC Converter
Efficient and versatile 48V to 5V power supply module with wide input range
- Input Voltage Range: 18-75V
- Nominal Voltage: 48V
- Output Voltage: 5V
- Output Current: 1200/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Top Features:
- Ultra wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Input under-voltage, output short circuit, over-current, over-voltage protection
The URB4805YMD-6WR3 series of isolated 20W DC-DC converters offer efficiencies up to 90% and an ultra 4:1 input voltage range. They are designed with input to output isolation tested at 1500VDC and provide protection features such as input under-voltage, output short-circuit, over-voltage, and over-current protection.
These converters meet CLASS A of CISPR32/EN55032 standards without requiring extra components. Optional packages are available for chassis or DIN-rail mounting (A2S, A4S), with added input reverse polarity protection. They are widely used in various applications including data transmission devices, battery power supplies, telecommunication devices, distributed power supply systems, hybrid module systems, remote control systems, industrial robot systems, and railway fields.
The URB4805YMD-6WR3 converters are IEC60950, UL60950, EN60950 approved and meet EN50155 railway standards with an industry-standard pin-out for easy integration.
* Images are for illustration only; actual product may vary.
