URB2424ZP-6WR3 Isolated 6W DC-DC Converter
Isolated 6W DC-DC converter with ultra-wide input voltage range and multiple protections.
- I/p Voltage range: 9-36V
- Nominal voltage: 24V
- O/p voltage: 24V
- O/p current: 250/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Features:
- Ultra-wide 4:1 range input voltage
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- I/O test isolation voltage: 1.5kVDC
The URB2424ZP-6WR3 series of isolated 6W DC-DC converters offer an ultra-wide range of voltage input from 9-36VDC (24VDC input) and 18-75VDC (48VDC input). They are tested with 1500VDC for input to output isolation and come with input under-voltage protection, output over-voltage protection, short-circuit protection, and over-current protection. These converters meet CLASS A of CISPR32/EN55032 EMI standards without the need for external components. They are widely used in industrial control, electric power, instruments, communication, and railway applications.
Industry standard pin-out, UL60950, EN60950, and IEC60950 approved. Meets EN50155 railway standard.
Package Includes:

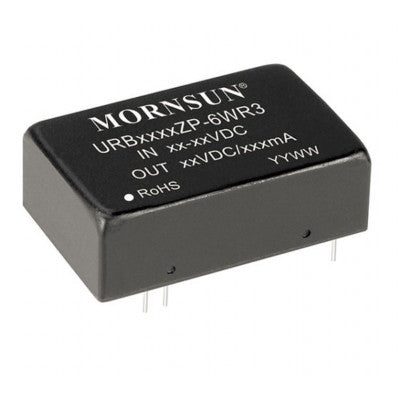

1 x URB2424ZP-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - DIP Package
Download DATASHEET: Download
* Images are for illustration only; actual product may vary.
