URB2412ZP-6WR3 Isolated 6W DC-DC Converter
Ultra-wide input voltage range and high efficiency for industrial applications
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: 12V
- Output Current: 500/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Features:
- Ultra-wide 4:1 range input voltage
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Input under-voltage protection, output over-voltage, short circuit, over-current protection
The URB2412ZP-6WR3 series of isolated 6W DC-DC converters offer an ultra-wide range of voltage input from 9-36VDC (24VDC input) and 18-75VDC (48VDC input). With input to output isolation tested at 1500VDC, these converters provide reliable power conversion for industrial control, electric power, instruments, communication, and railway applications. They meet CLASS A of CISPR32/EN55032 EMI standards without the need for external components.
Operating within an ambient temperature range of -40°C to +85°C, these converters also feature industry-standard pin-out, UL60950, EN60950, IEC60950 approvals, and compliance with EN50155 railway standards.
Package Includes:

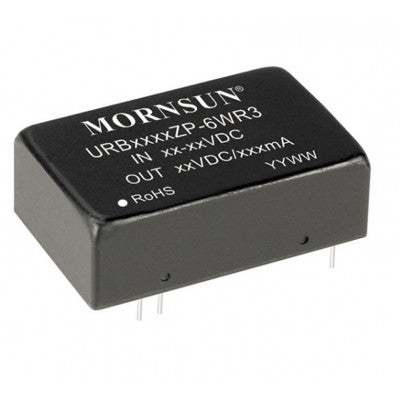

- 1 x URB2412ZP-6WR3 Mornsun 24V to 12V DC-DC Converter 6W Power Supply Module - DIP Package
Images are for illustration only; actual product may vary.
