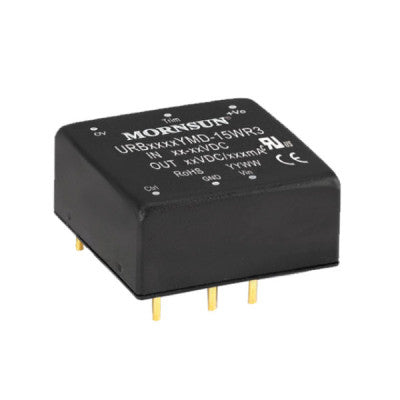

URB2412YMD-15WR3 Mornsun 24V to 12V DC-DC Converter
Efficient and reliable DC-DC converter with wide input voltage range
- I/p Voltage range: 9-36V
- Nominal voltage: 24V
- O/p voltage: 12V
- O/p current: 1250/0mA
- Wattage: 15W
- Isolation: 1.5kvdc
- Package: Dip
Top Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 91%
- Input under-voltage protection
- Output short circuit, over-current, overvoltage protection
This URB2412YMD-15WR3 Mornsun DC-DC Converter is designed to provide a reliable power supply solution with an industry-standard pin-out. It offers high efficiency of up to 91% and I/O isolation test voltage of 1.5k VDC, ensuring safe and stable operation.
The converter features input reverse polarity protection and is compliant with CISPR32/EN55032 CLASS A EMI standards without the need for external components. It is suitable for a wide range of applications with an operating ambient temperature range of -40 to +105°C.
Approved by IEC62368, UL62368, and EN62368, this converter comes in a Dip package and includes 1 x URB2412YMD-15WR3 Mornsun 24V to 12V DC-DC Converter 15W Power Supply Module.
* Images are for illustration only; actual product may vary.
