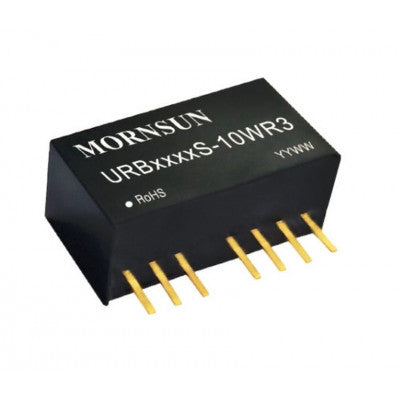

URB2405S-10WR3 Isolated 10W DC-DC Converter
Ultra-wide input voltage range, high efficiency, and multiple protections
- I/p Voltage range: 9-36V
- Nominal voltage: 24V
- O/p voltage: 5V
- O/p current: 2000/0mA
- Wattage: 10W
- Isolation: 1.5kVDC
- Package: SIP
Top Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 87%
- No-load power consumption as low as 0.12W
- Operating ambient temperature range: -40°C to +105°C
The URB2405S-10WR3 series of isolated 10W DC-DC converter products have an ultra-wide 4:1 input voltage and feature efficiencies of up to 88%. Input to output isolation is tested with 1500VDC, and the converters safely operate in an ambient temperature of -40°C to +85°C. They also feature input under-voltage protection, output short-circuit, and over-current protection. Widely used in medical care, industrial control, electric power, instruments, and communication fields.
Package Includes:
1 x URB2405S-10WR3 Mornsun 24V to 5V DC-DC Converter 10W Power Supply Module - Compact SIP Package
Images are for illustration only; actual product may vary.
