URB2403YMD-6WR3 Series Isolated 6W DC-DC Converter
Efficient and versatile 6W DC-DC converter with wide input voltage range
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: 3.3V
- Output Current: 2400/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Operating ambient temperature range: -40°C to +85°C
URB2403YMD-6WR3 series are isolated 6W DC-DC converter products with 4:1 input voltage range. They feature efficiencies up to 88%, 1500VDC input to output isolation and the converter safely operate ambient temperature of -40°C to +85°C, input under-voltage protection, output short-circuit, over-current, over-voltage protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection, which make them widely applied in medical care, industrial control, electric power, instruments and communication and railway fields.
Package Includes:

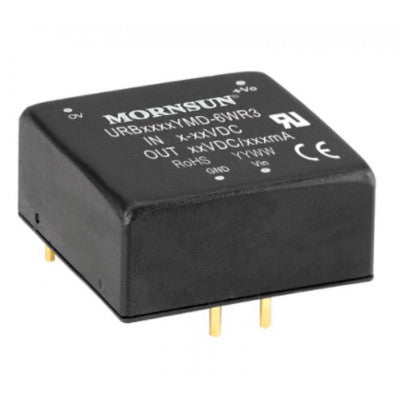

1 x URB2403YMD-6WR3 Mornsun 24V to 3.3V DC-DC Converter 6W Power Supply Module - DIP Package
*Images are for illustration only; actual product may vary.
