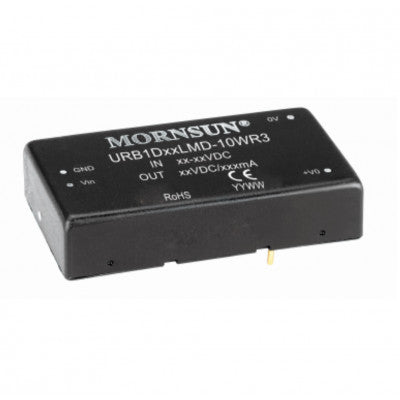

URB1D05LMD-10WR3 Mornsun 110V to 5V DC-DC Converter
Efficient and reliable DC-DC converter with wide input voltage range
- I/p Voltage range: 40-160V
- Nominal voltage: 110V
- O/p voltage: 5V
- O/p current: 2000/0mA
- Wattage: 10W
- Isolation: 1.5k VDC
- Package: Horizontal DIP Package
- Package Includes: 1 x URB1D05LMD-10WR3 Mornsun 110V to 5V DC-DC Converter 10W Power Supply Module - Horizontal DIP Package
Top Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 85%
- Input under-voltage protection
- Output short circuit, over-current, over-voltage protection
This DC-DC converter is designed to meet UL62368/IEC62368 standard and is EN50155/EN60950 approved. It offers industry-standard pin-out for easy integration.
Input reverse polarity protection is available with chassis (A2S) or Din-Rail mounting (A4S) version. The converter is EN50121-3-2 & CISPR32/EN55032 CLASS A EMI compliant without external components, ensuring reliable performance.
Operating ambient temperature range of -40 to +85 Deg C makes it suitable for a variety of environments. The converter also features low output ripple & noise for stable power delivery.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
