URA2412ZP-6WR3 Isolated 6W DC-DC Converter
Ultra-wide input voltage range, high efficiency, and multiple protection features
- I/p Voltage range: 9-36V
- Nominal voltage: 24V
- O/p voltage: +-12V
- O/p current: +-250/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
Top Features:
- Ultra-wide 4:1 range input voltage
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Operating ambient temperature range: -40°C to +85°C
The URA2412ZP-6WR3 series of isolated 6W DC-DC converters offer an ultra-wide range of voltage input from 9-36VDC (24VDC input) and 18-75VDC (48VDC input). They provide input to output isolation tested at 1500VDC and come with input under-voltage protection, output over-voltage, short-circuit, and over-current protection. These converters meet CLASS A of CISPR32/EN55032 EMI standards without the need for external components. They are widely used in industrial control, electric power, instruments, communication, and railway applications.
Industry standard pin-out and approved by UL60950, EN60950, and IEC60950, the URA2412ZP-6WR3 converters also meet EN50155 railway standards.
Package Includes:

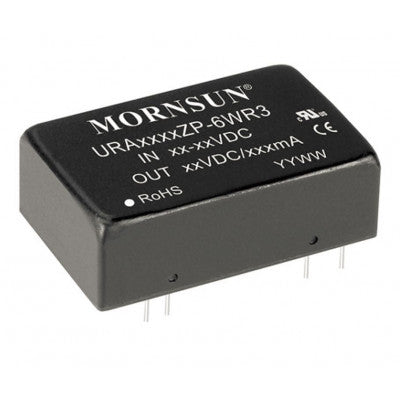

- 1 x URA2412ZP-6WR3 Mornsun 24V to ±12V DC-DC Converter 6W Power Supply Module - DIP Package
* Images are for illustration only; actual product may vary.
