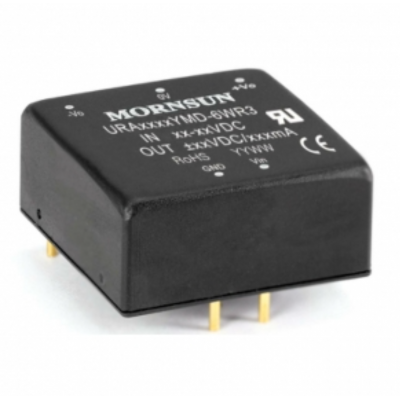

URA2412YMD-6WR3 Mornsun 24V to ±12V DC-DC Converter
Efficient DC-DC converter with wide input range and high reliability
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: ±12V
- Output Current: ±250/0mA
- Wattage: 6W
- Isolation: 1.5kVDC
- Package: DIP
- Package Includes: 1 x URA2412YMD-6WR3 Mornsun 24V to ±12V DC-DC Converter 6W Power Supply Module - DIP Package
Top Features:
- Ultra wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- Input under-voltage protection
This efficient DC-DC converter offers a high efficiency of up to 88% and a wide input voltage range of 9-36V, making it suitable for various applications. With features like input under-voltage protection and output over-current protection, this converter ensures reliable performance in diverse environments.
The URA2412YMD-6WR3 converter is designed to meet industry standards such as IEC60950, UL60950, EN60950, and EN62368, providing you with a safe and compliant power supply solution. Whether you choose the chassis or Din-Rail mounting version, you can benefit from features like input reverse polarity protection and I/O test isolation voltage of 1.5kVDC.
With an operating ambient temperature range of -40 to +85 degrees, this converter is suitable for a wide range of operating conditions. It also meets CISPR32/EN55032 CLASS A standards without the need for extra components, ensuring electromagnetic compatibility.
For applications requiring a reliable and efficient DC-DC converter that meets industry standards, the URA2412YMD-6WR3 Mornsun converter is an ideal choice.
Download the datasheet for more detailed information on the specifications and features of this product.
