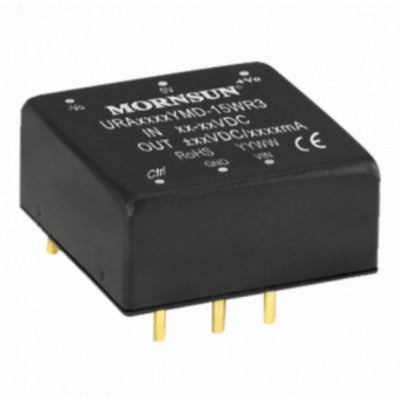

URA2412YMD-15WR3 Mornsun 24V to ±12V DC-DC Converter
Efficient and versatile DC-DC converter with wide input voltage range
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: ±12V
- Output Current: ±625/0mA
- Wattage: 15W
- Isolation: 1.5kVDC
- Package: DIP
Top Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 91%
- No-load power consumption as low as 0.24W
- Input under-voltage protection
The URA2412YMD-15WR3 Mornsun 24V to ±12V DC-DC Converter is designed to meet the demands of various applications, offering high efficiency and reliable performance. With an industry-standard pin-out and a wide operating temperature range of -40 to +105°C, this converter ensures stable power supply in challenging environments.
It features I/O isolation test voltage of 1.5kVDC and provides protection against output short circuit, over-current, overvoltage, and input reverse polarity. The converter meets the EN50155 Railway Standard, making it suitable for railway applications.
The package includes 1 x URA2412YMD-15WR3 Mornsun 24V to ±12V DC-DC Converter 15W Power Supply Module in a DIP package.
* Images are for illustration only; actual product may vary.
