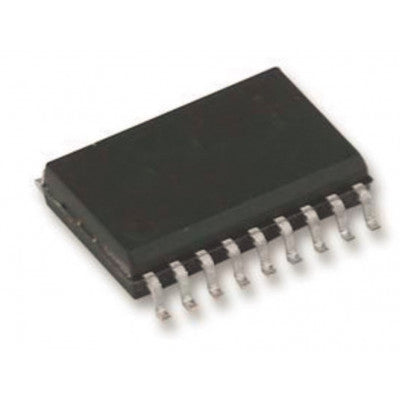

ULN2803APG / AFWG Series
High-voltage, high-current darlington drivers with integral clamp diodes
- Output current (single output): 500 mA (max)
- High sustaining voltage output: 50 V (min)
- Output clamp diodes
- Inputs compatible with various types of logic
- Package Type: APG : DIP 18-pin
Top Features:
- 500 mA output current
- 50 V high sustaining voltage
- Integral clamp diodes
- Compatible with various logic types
The ULN2803APG / AFWG Series are high-voltage, high-current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp, and display (LED) drivers.
Specifications:
- Output sustaining voltage: 0.5 to 50V
- Output current: 500mA / ch
- Input voltage: 0.5 to 30V
- Clamp diode reverse voltage: 50V
- Clamp diode forward current: 500mA
- Power dissipation: 1.47W
- Operating temperature: -40 to 85°C
- Storage temperature: -55 to 150°C
Related Document: ULN2803 IC Data Sheet
Images are for illustration only; actual product may vary.
