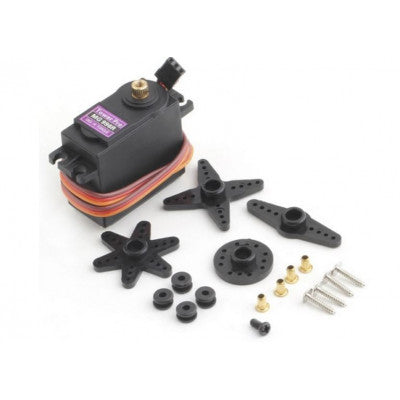

Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)
Upgrade your servo with extra high torque in a tiny package.
- Operating voltage: 4.8 V - 7.2 V
- Running Current: 500 mA – 900 mA (6V)
- Stall Current: 2.5 A (6V)
- Temperature range: 0 ºC – 55 ºC
- Control System: Analog
- Operating Angle: 180 degrees
- Required Pulse: 900us-2100us
- Direction: CCW
- Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
Top Features:
- Metal gearing for high torque
- Upgraded shock-roofing
- Redesigned PCB and IC control system
This unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector. It fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec.
Wire Configuration:
RED – Positive
Brown – Negative
Orange – Signal (PWM)
Images are for illustration only; actual product may vary.
