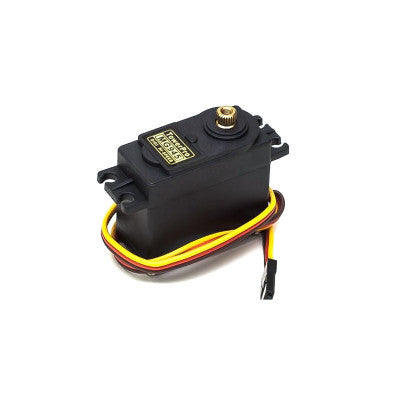

Tower Pro MG945 Digital High Speed Servo Motor
A low-cost, high-quality digital servo suitable for various applications.
- Operating Voltage (VDC): 4.8~6.6
- Temperature Range: 0-55
- Stall Torque @ 4.8V (Kg-Cm): 10
- Stall Torque @ 6.6V (Kg-Cm): 12
- Operating Speed @ 4.8V: 0.23sec/60
- Operating Speed @ 6.6V: 0.2sec/60
- Degree of Rotation: 180
- Dead Band Width: 1uS
- Gear Type: Metal
- Length (mm): 40.7
- Width (mm): 19.7
- Height (mm): 42.9
- Weight (gm): 66
Features:
- Metal gear type
- Power supply through external adapter
- Servo wire length: 32cm
- Stall Torque: 10kg/cm (4.8v); 12kg/cm (6v)
Wire Description: RED Positive, Brown Negative, Orange Signal
CE & RoHS approved. Servo gear set and shaft upgraded to aluminum 6061-T6 for strength and lightness. Universal S type connector fits most receivers including Futaba, JR, Hitec, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.

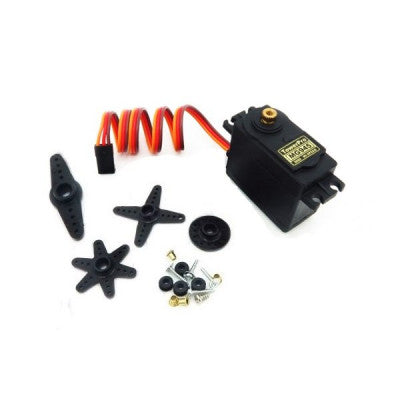

Package Includes: 1 x Tower Pro MG945 Digital High Speed Servo Motor and Accessories Parts (as shown in the image).
*Images are for illustration only; actual product may vary.
