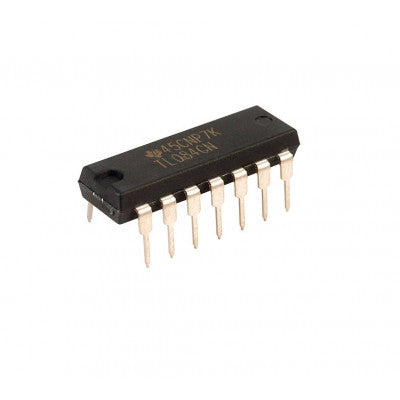

TL084 JFET-Input Operational Amplifier
A versatile operational amplifier design with high performance characteristics.
- Number of channels: 4
- Total supply voltage (Max): 30
- Total supply voltage (Min): 7
- Rail-to-rail In to V+ GBW (Typ) (MHz): 3
- Slew rate (Typ) (V/us): 13
- Vos (offset voltage @ 25 C) (Max) (mV): 6
- Iq per channel (Typ) (mA): 1.4
- Vn at 1 kHz (Typ) (nV/rtHz): 18
- Operating temperature range (°C): 0 to 70, -40 to 85, -40 to 125
- Offset drift (Typ) (?V/C): 18
- Input bias current (Max) (pA): 200
- CMRR (Typ) (dB): 86
- Output current (Typ) (mA): 10
Top Features:
- Low Power Consumption: 1.4 mA/ch Typical
- High Slew Rate: 13 V/?s Typical
- Output Short-Circuit Protection
- High Input Impedance: JFET Input Stage
The TL084 JFET-input operational amplifier family provides a wider selection compared to any previously developed operational amplifier family. Each amplifier in this family incorporates high-voltage JFET and bipolar transistors in a monolithic integrated circuit, ensuring well-matched components. These devices offer features such as high slew rates, low input bias and offset currents, and a low offset-voltage temperature coefficient.
Designed for efficiency and reliability, the TL084 is ideal for various applications requiring precision amplification. For more details, refer to the TL084 IC Datasheet.
*Images are for illustration only; actual product may vary.
