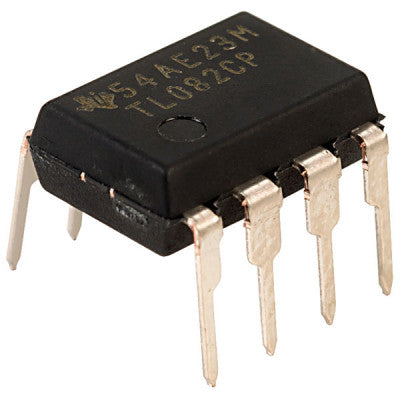

TL082 JFET-Input Operational Amplifier
A wide selection of operational amplifiers with high performance features.
- Number of channels (#): 2
- Total supply voltage (Max): 30
- Total supply voltage (Min): 7
- Rail-to-rail In to V+ GBW (Typ) (MHz): 3
- Slew rate (Typ) (V/us): 13
- Vos (offset voltage @ 25 C) (Max) (mV): 6
- Iq per channel (Typ) (mA): 1.4
- Vn at 1 kHz (Typ) (nV/rtHz): 18
- Operating temperature range (°C): -40 to 85, 0 to 70
- Offset drift (Typ) (uV/C): 18
- Input bias current (Max) (pA): 200
- CMRR (Typ) (dB): 86
- Output current (Typ) (mA): 10
Features:
- Low Power Consumption: 1.4 mA/ch Typical
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias Current: 30 pA Typical
- Low Input Offset Current: 5 pA Typical
The TL082 JFET-input operational amplifier family offers a wider selection than any previously developed family. Each amplifier in the family incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
The devices also include output short-circuit protection, are latch-up-free, and have high input impedance provided by the JFET input stage. The common-mode input voltage range includes VCC+, ensuring versatile use in various applications.
For more details, refer to the TL082 IC Datasheet.
* Images are for illustration only; actual product may vary.
