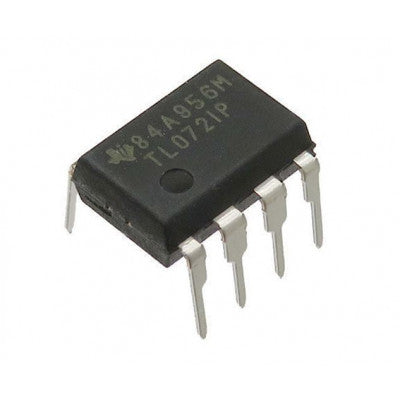

TL072 JFET-Input Operational Amplifiers
High-performance operational amplifiers for audio pre-amplifier applications
- Number of channels: 2
- Total supply voltage (Max): 30
- Total supply voltage (Min): 7
- Rail-to-rail In to V+ GBW (Typ) (MHz): 3
- Slew rate (Typ) (V/us): 13
- Vos (offset voltage @ 25 C) (Max) (mV): 6
- Iq per channel (Typ) (mA): 1.4
- Vn at 1 kHz (Typ) (nV/rtHz): 18
- Operating temperature range (°C): -40 to 85, 0 to 70
- Offset drift (Typ) (uV/C): 18
- Input bias current (Max) (pA): 200
- CMRR (Typ) (dB): 100
- Output current (Typ) (mA): 10
Top Features:
- Low Power Consumption
- Wide Common-Mode and Differential Voltage Ranges
- Low Total Harmonic Distortion: 0.003% (Typical)
- High-Input Impedance: JFET Input Stage
The TL072 JFET-input operational amplifiers are designed for high-fidelity and audio pre-amplifier applications. They offer high slew rates, low-input bias and offset currents, and a low offset-voltage temperature coefficient. The devices ensure low harmonic distortion and noise for optimal audio performance.
With features like output short-circuit protection, internal frequency compensation, and latch-up-free operation, the TL072 series provides reliable and high-quality amplification. The amplifiers have a common-mode input voltage range that includes VCC+ for versatile usage.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
