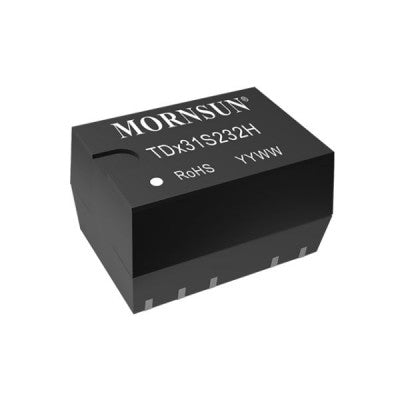

TD531S232H Mornsun 5V Input Single High Speed RS232 Isolated Transceiver - SMD12
Compact and high-speed RS232 isolated transceiver with enhanced EMC performance.
- Isolation Transceivers: Yes
- I/p Voltage range: 4.75-5.25(vdc)
- Nominal voltage: 5(vdc)
- Baud rate: 115200bps
- Static current: 20mA
- Max operating current(mA): 60mA
- Package Includes: 1 x TD531S232H Mornsun 5V Input Single High Speed RS232 Isolated Transceiver - SMD12 Package
Top Features:
- Meets EIA/TIA-232-F standard
- Small SMD12 size: 17.00 x 12.14 x 9.45mm
- High baud rate up to 115200bps
- Isolation test voltage: 2500 VDC
Enhance your electronic projects with the TD531S232H Mornsun 5V Input Single High Speed RS232 Isolated Transceiver. This compact transceiver meets the EIA/TIA-232-F standard and offers a high baud rate of up to 115200bps. With a small SMD12 size of 17.00 x 12.14 x 9.45mm, it is suitable for various applications.
The transceiver features an isolation test voltage of 2500 VDC, ensuring reliable performance. It also includes an integrated isolated DC/DC converter and operates within an ambient temperature range of -40C to +85C. The enhanced EMC performance, along with the recommended external circuit, provides added protection for your circuits.
EN62368 approval further guarantees the quality and safety of this transceiver. Whether you're working on industrial automation, telecommunications, or other electronic projects, the TD531S232H is a versatile and reliable choice.
