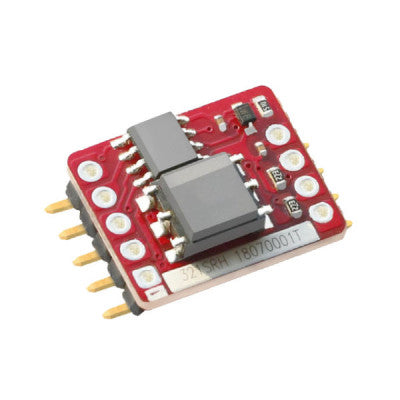

TD521S485H Mornsun 5V Input Single High-Speed RS485 Isolated Transceiver Module - SMD Package
Compact and efficient isolated transceiver with high baud rate and dual-port isolation
- Isolation Transceivers: TD521S485H
- Input Voltage Range: 4.75-5.25V
- Nominal Voltage: 5VDC
- Mark: 521SRH
- Baud Rate: 200Kbps
- Static Current: 38mA
- Max Operating Current: 130mA
- Isolated Power Output (Typ): 5VDC
- Number of Nodes: 64
- Package Includes: 1 x TD521S485H Mornsun 5V Input Single High-Speed RS485 Isolated Transceiver Module - SMD Package
Top Features:
- Small size, SMD package
- Highly efficient isolated DC-DC converter
- High baud rate of up to 200kbps
- Two-port isolation test voltage (3.0kVDC)
The TD521S485H Mornsun 5V Input Single High-Speed RS485 Isolated Transceiver Module is designed for applications requiring high-speed communication and reliable isolation. With a baud rate of 200Kbps and support for up to 64 nodes, this module ensures efficient data transmission in various environments.
Approved by EN60950, this transceiver provides both isolation and ESD bus protection in a single package. It operates within a wide temperature range of -40°C to +85°C, making it suitable for industrial and commercial use.
For more details or bulk pricing inquiries, please contact our sales team at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
