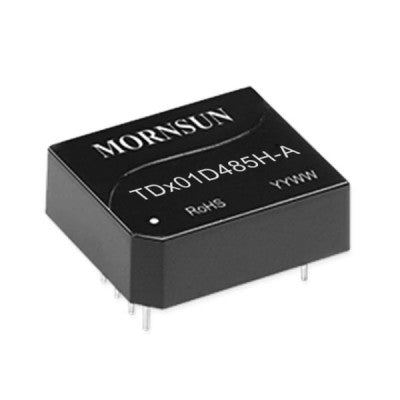

TD501D485H-A Mornsun 5V Logic Level to RS485 Isolated Signal Converter Module
Efficient isolated DC-DC converter with high baud rate and two-port isolation
- Isolation Transceivers: Integrated high efficient isolated DC-DC converter
- I/p Voltage range: 4.75-5.25V
- Nominal voltage: 5VDC
- Baud rate: 115200 bps
- Static current: 40mA
- Max operating current: 70mA
- No of Nodes: 32
- Package Includes: 1 x TD501D485H-A Mornsun 5V Logic Level to RS485 Isolated Signal Converter Module with Automated Switching - DIP Package
Top Features:
- High baud rate of up to 115200bps
- Two-port isolation test voltage of 2.5kVDC
- Operating ambient temperature range: -40C to +85C
- Supports a maximum of 32 nodes
The TD501D485H-A Mornsun 5V Logic Level to RS485 Isolated Signal Converter Module features an integrated high efficient isolated DC-DC converter with a high baud rate of up to 115200bps. It has a two-port isolation test voltage of 2.5kVDC and operates in an ambient temperature range of -40C to +85C. The module supports a maximum of 32 nodes and offers set isolation and ESD bus protection in one, along with automatic send and receive data function. It is EN60950 approved.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
