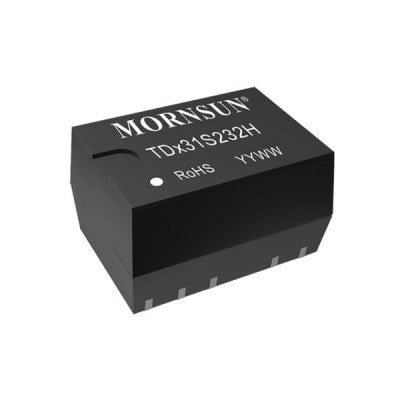

TD331S232H Mornsun 3.3V Input Single High Speed RS232 Isolated Transceiver - SMD12 Package
Compact isolated transceiver with high baud rate and enhanced EMC performance.
- Isolation Transceivers: Isolated
- I/p Voltage range: 3.15-3.45 (VDC)
- Nominal voltage: 3.5 (VDC)
- Baud rate: 115200 bps
- Static current: 20 mA
- Max operating current: 60 mA
- Package Includes: 1 x TD331S232H Mornsun 3.3V Input Single High Speed RS232 Isolated Transceiver - SMD12 Package
Top Features:
- Meets EIA/TIA-232-F standard
- Small SMD12 size: 17.00 x 12.14 x 9.45mm
- High baud rate up to 115200bps
- Isolation test voltage: 2500 VDC
Enhance your electronic projects with the TD331S232H Mornsun 3.3V Input Single High Speed RS232 Isolated Transceiver. This compact transceiver is designed to meet the EIA/TIA-232-F standard and offers a high baud rate of up to 115200bps. With an isolation test voltage of 2500 VDC and integrated isolated DC/DC converter, this transceiver ensures reliable performance even in challenging environments.
The transceiver operates within an ambient temperature range of -40°C to +85°C, making it suitable for a wide range of applications. Its small SMD12 size of 17.00 x 12.14 x 9.45mm allows for easy integration into your projects. Additionally, the TD331S232H has enhanced EMC performance with the recommended external circuit and holds EN62368 approval for added safety and compliance.
Whether you're working on industrial automation, telecommunications, or other electronic projects, the TD331S232H Mornsun transceiver is a versatile and reliable choice. Download the datasheet for more detailed information.
Images are for illustration only; actual product may vary.
