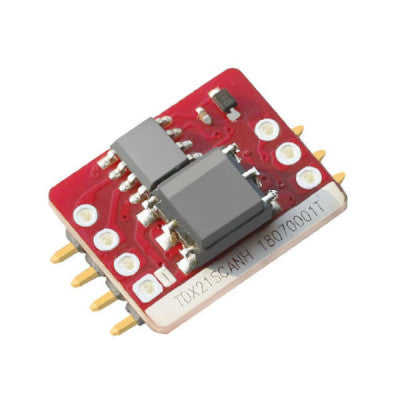

TD321SCANH Mornsun 3.3V Input Single High Rate CAN Isolation Transceiver Module
Compact isolation transceiver with high baud rate and EN60950 approval
- Isolation Transceivers: Yes
- I/p Voltage range: 3.3V
- Nominal voltage: 3.3 (vdc)
- Baud rate: 40k-1M (bps)
- Static current: 30mA
- Max operating current(mA): 60mA
- Bus maximum voltage(vdc): +-58
- No of Nodes: 110
- Package Includes: 1 x TD321SCANH Mornsun 3.3V Input Single High Rate CAN Isolation Transceiver Module - SMD Package
Top Features:
- Small size SMD package
- Two-port isolation test voltage (3.0kVDC)
- High baud rate of up to 1 Mbps
- Operating ambient temperature range: -40C to +105C
The TD321SCANH Mornsun 3.3V Input Single High Rate CAN Isolation Transceiver Module is a compact solution with a high baud rate of 40k-1M (bps) and EN60950 approval. It offers two-port isolation test voltage of 3.0kVDC and supports a maximum of 110 nodes on the bus. The module operates within an ambient temperature range of -40C to +105C.
For more details or bulk pricing, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
