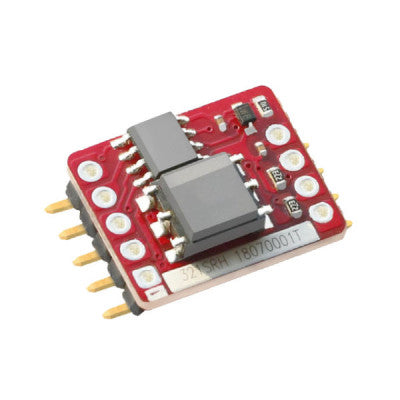

TD321S485H Mornsun 3.3V Input Single High-Speed RS485 Isolated Transceiver Module - SMD Package
Compact and efficient isolated transceiver with high baud rate and dual-port isolation
- Isolation Transceivers: TD321S485H
- Input Voltage Range: 3.15-3.45V
- Nominal Voltage: 3.5VDC
- Mark: 321SRH
- Baud Rate: 200Kbps
- Static Current: 28mA
- Max Operating Current: 130mA
- Isolated Power Output (Typ): 5VDC
- Number of Nodes: 64
- Package Includes: 1 x TD321S485H Mornsun 3.3V Input Single High-Speed RS485 Isolated Transceiver Module - SMD Package
Top Features:
- Small size and SMD package
- Highly efficient isolated DC-DC converter
- High baud rate of up to 200kbps
- Two-port isolation with 3.0kVDC test voltage
Operating in an ambient temperature range from -40°C to +85°C, the TD321S485H Mornsun transceiver is designed to support a maximum of 64 nodes. It combines isolation and ESD bus protection in one unit and holds EN60950 approval for added safety.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
