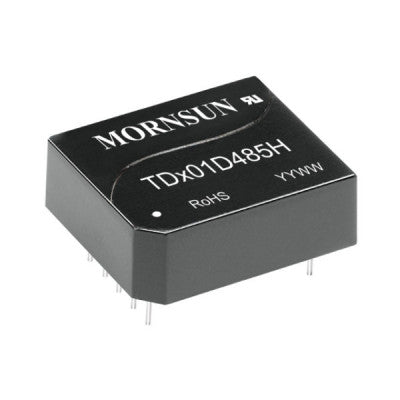

TD301D485H Mornsun 3V Logic Level to RS485 Isolated Signal Converter Module
High-speed RS485 isolation transceiver with 32 nodes support
- Input Voltage Range: 3.15-3.45 (VDC)
- Nominal Voltage: 3.3 (VDC)
- Baud Rate: 200kbps
- Static Current: 20mA
- Max Operating Current: 130mA
- Number of Nodes: 32
- Package Includes: 1 x TD301D485H Mornsun 3V Logic Level to RS485 Isolated Signal Converter Module - DIP Package
Top Features:
- High baud rate of up to 200kbps
- Two-port isolation test voltage of 2.5kVDC
- Operating ambient temperature range: -40 to +85
- Supports maximum 32 nodes
This single high-speed RS485 isolation transceiver module is UL60950 and EN62368 approved, providing integrated high efficient isolated DC-DC conversion. It combines set isolation and ESD bus protection in one unit for added convenience.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
