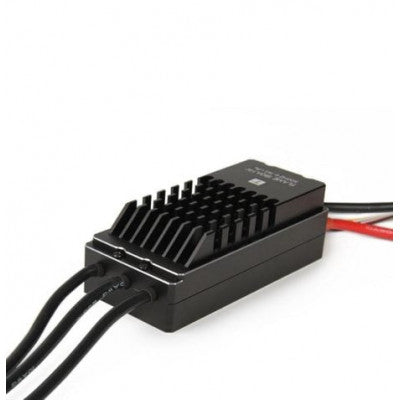

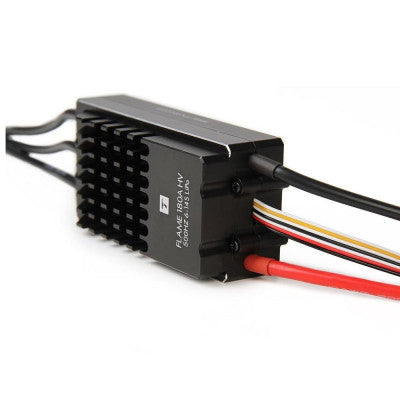

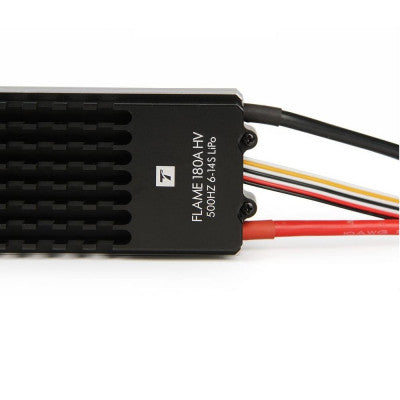

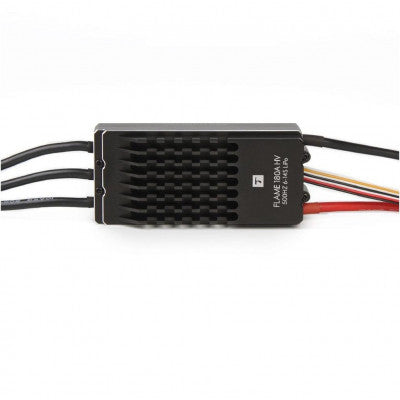

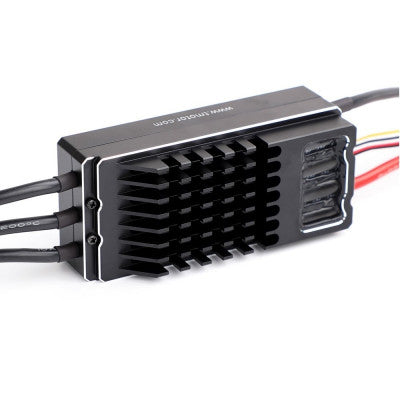

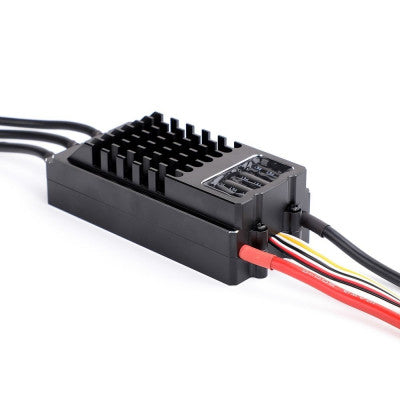

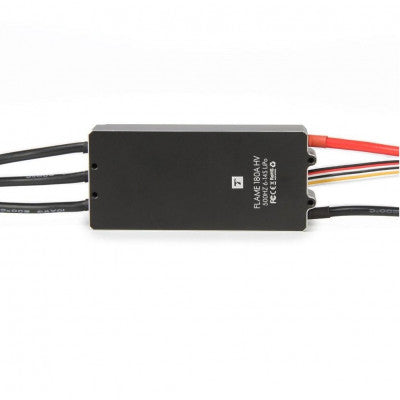

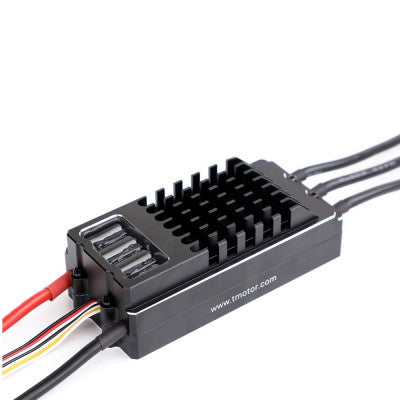

T-motor 180A 12S Flame Type ESC
Efficient and reliable ESC designed for multi-rotors, compatible with U12 Motors.
- Continuous Current: 180A
- Peak Current (10s): 200A
- BEC: No
- LIPO: 6-12s
- Programmable: No

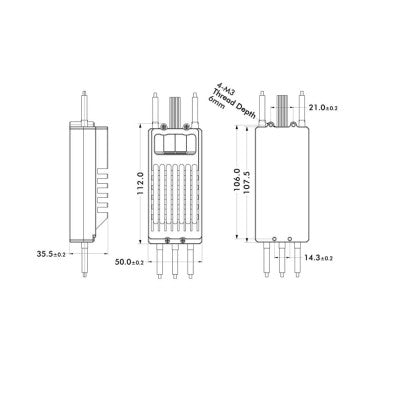

- Dimension: 112 x 51 x 36 mm
- Weight: 280 g
Features:
- High-performance microprocessor for best compatibility
- Configurable throttle range for all transmitters
- Smooth, linear, quick, and precise throttle response
- CNC Aluminum alloy enclosure, IP55 PCB
The T-motor 180A 12S Flame Type ESC is specially designed for multi-rotors and is compatible with U12 Motors. It features efficient and reasonable dissipation with a layered structure. This ESC can provide a continuous current of 180A and a peak current of up to 200A for 10 seconds.
The ESC is equipped with a high-performance microprocessor that ensures the best compatibility with all kinds of motors and the highest driving efficiency. The throttle range is configurable to be compatible with all transmitters available on the market, providing a smooth, linear, quick, and precise throttle response.
Constructed with a CNC Aluminum alloy enclosure and IP55 PCB with nanotechnology, this ESC is widely used in UAV agriculture, search and rescue, and other applications. It features a separate voltage regulator IC for the microprocessor to enhance anti-jamming capability.
Multiple protection features include low-voltage cut-off protection, over-heat protection, and throttle signal loss protection. The ESC is USB supported, allowing firmware updates via a USB adapter. It also supports several types of Program Cards for easy programming at home or in the field.
Package Includes:
- 1 x T motor Flame 180A 12S
Images are for illustration only; actual product may vary.
