X-NUCLEO-IHM11M1 Low Voltage 3-Phase Brushless DC Motor Driver
An affordable solution for portable motor-driving applications
- Voltage Range: 1.8 V to 10 V
- Current: Up to 1.3 A
- Control: Current control with adjustable off-time
- Protection: Full protection overcurrent and short circuit
- Compatibility: Arduino UNO R3 connector, STM32 Nucleo boards
- Connectors: ST morpho connectors, Hall/Encoder motor sensor connector
- Regulation: Potentiometer available for speed regulation
Top Features:
- Low voltage range for versatile applications
- Current control with adjustable off-time
- Full protection against overcurrent and short circuits
- Compatible with Arduino UNO R3 and STM32 Nucleo boards
The X-NUCLEO-IHM11M1 is a low voltage three-phase brushless DC motor driver expansion board based on the STSPIN230 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of portable motor-driving applications such as thermal printers, robotics, and toys. The board is designed for six-step and FOC algorithms.

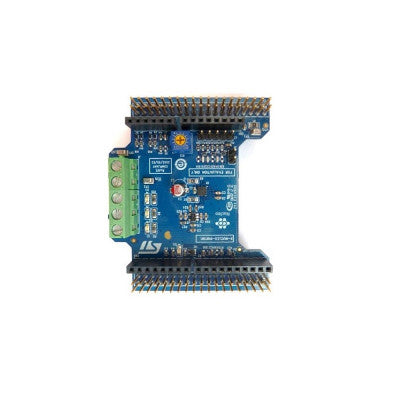

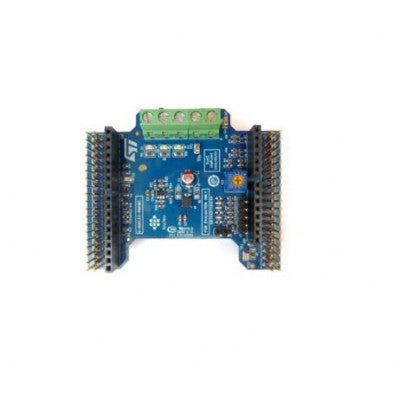

Package Includes: 1 x STMICROELECTRONICS Expansion Board, STSPIN230 Low Voltage 3-Phase Brushless DC Motor Driver
Images are for illustration only; actual product may vary.
