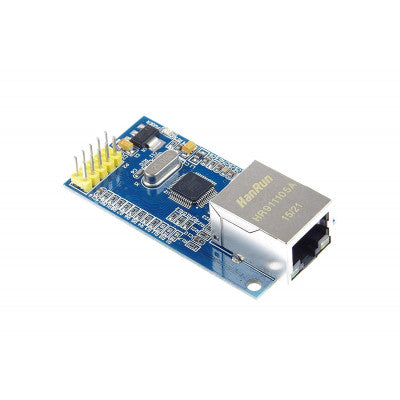

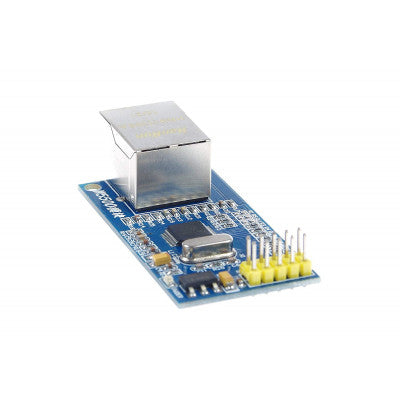

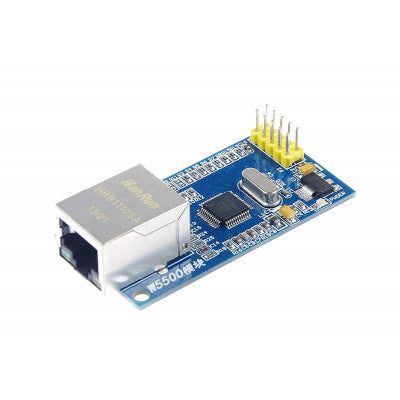

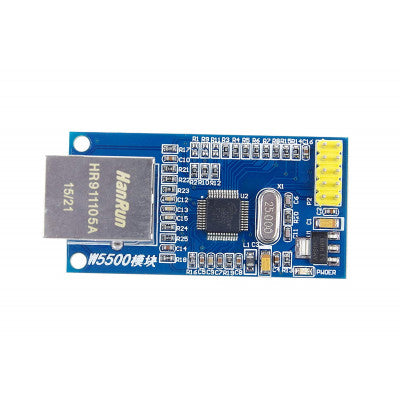

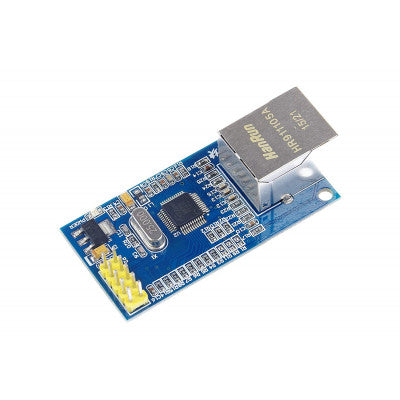

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module
Effortlessly connect embedded systems to the Internet with the W5500 chip.
- Chip type: W5500
- Input Voltage (V): 3.3 ~ 5
- Supports Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Internal Memory (KByte): 32
- Length (mm): 60
- Width (mm): 28
- Height (mm): 17
- Weight (gm): 12
Top Features:
- 10BaseT/100BaseTX Ethernet PHY embedded
- Supports automatic response (full duplex/half duplex mode)
- Supports 8 independent sockets simultaneously
- Internal 32Kbytes Memory for Tx/Rx Buffers
The SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module is a game-changer in Internet connectivity for embedded systems. With the W5500 chip, users can seamlessly integrate Internet connectivity into their applications without the need for complex coding. The module supports a transmission rate of 10/100MBPS and features sleep mode and wake on LAN capabilities.
Featuring 8 independent ports that can run simultaneously, the module supports both 3.3V and 5V power supplies, making it versatile for different SCM system setups. The communication mode between the module and MCU system is SPI protocol, with support for SPI clock frequencies up to 80M. Additionally, the module provides STM32 and 51 SCM client, server, and three modes of UDP routines.
Applications for the SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module include home network devices like Set-Top Boxes and Digital Media Adapters, as well as Serial-to-Ethernet applications such as Access Controls and LED displays. It is also suitable for Parallel-to-Ethernet uses like POS/Mini Printers and Copiers, USB-to-Ethernet devices such as Storage Devices and Network Printers, and GPIO-to-Ethernet applications like Home Network Sensors. Moreover, it finds its place in Security Systems, Factory and Building Automation, Medical Monitoring Equipment, and Embedded Servers.
