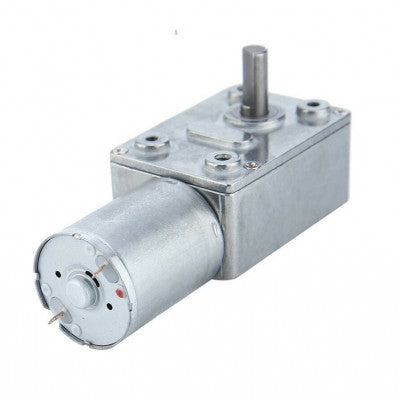

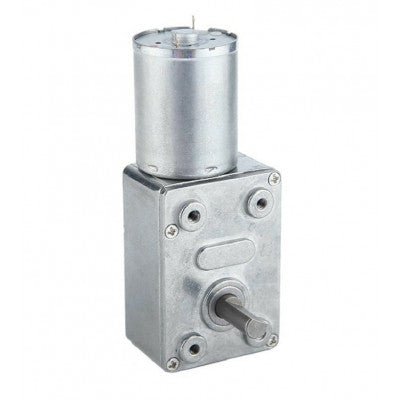

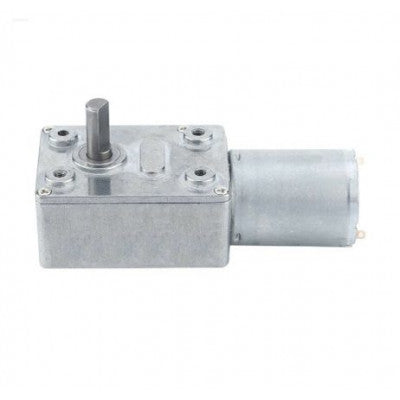

Solid Shaft JGY370 DC 12V 6RPM High Torque Self-locking Strong Wheel Turbine Worm Reduction Motor
Low-speed DC motor with high torque and worm metal gearbox
- Model: JGY370-12-6
- Rated Voltage: 12V
- Revolving Speed: 6 RPM
- Gear Material: Full Metal
- Shaft Length: 14mm
- Shaft Diameter: 6.2mm
- Shaft Type: D Type
- Total Body Length: 81mm
- Weight: 153g
Features:
- High precision all-round gears
- Pure copper worm gear
- Ball precision gear
- Zinc alloy die-cast alloy pressure shell
Low-speed DC motors with worm metal gearboxes are known for delivering high power in a compact size. These motors are ideal for applications requiring motor speed adjustment and reversing capabilities.
The motor rotor is made of pure copper, providing low resistance and excellent electrical conduction. The rotor core is constructed from high-quality strong Silicon steel with low reluctance.
High-quality carbon brushes are used for better commutation performance, offering good thermal conductivity and low friction, resulting in less wear of carbon brushes.
A high-strength magnet with a small volume, lightweight design is provided for low energy consumption, strong power, and greater torque.
Package Includes: 1 x Solid Shaft JGY370 DC 12V 6RPM/MIN High Torque Self-locking Strong Wheel Turbine Worm Reduction Motor
* Images are for illustration only; actual product may vary.
