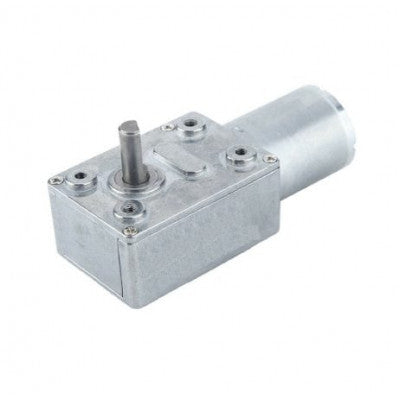

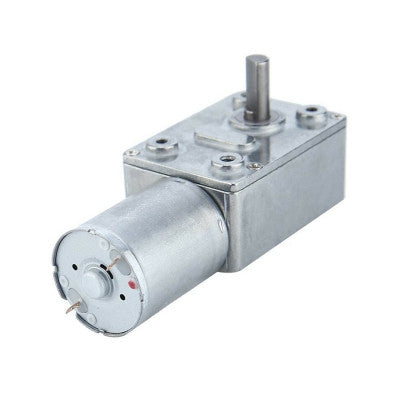

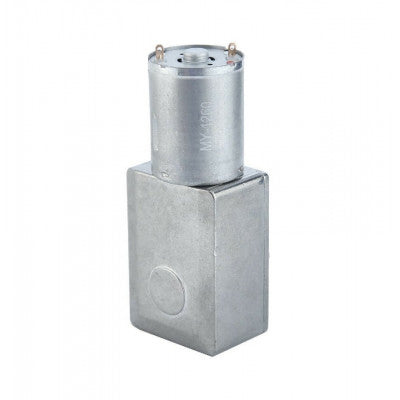

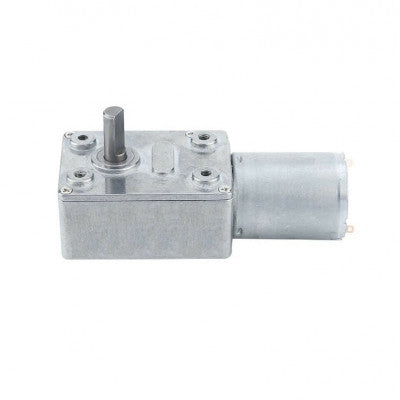

Solid Shaft JGY370 DC 12V 23RPM High Torque Self-locking Strong Wheel Turbine Worm Reduction Motor
Low-speed DC motor with worm metal gearbox for high torque and compact design
- Model: JGY370-12-23
- Rated Voltage: 12V
- Revolving Speed: 23 RPM
- Rated Torque: 10 kg. cm
- Stall Torque: 40 kg. cm
- Rated Current: 0.6 A
- Stall Current: 1 A
- Gear Material: Full Metal
- Shaft Size: 14mm
- Shaft Type: D Type
- Body Length: 80mm
- Weight: 150g
Features:
- High precision all-round gears
- Pure copper worm gear
- Ball precision gear
- Zinc alloy die-cast alloy pressure shell
These motors are ideal for applications requiring motor speed adjustment and reversing capabilities. They are commonly used in intelligent home automation systems, industrial automation controls, industrial drive assemblies, household appliances, office equipment, health equipment, medical equipment, high-end toys, electric tools, automatic window sprayers, robotic cars, and automated facilities.
The motor rotor is made of pure copper with low resistance and electrical conduction. The rotor core is made from high-quality strong Silicon steel with low reluctance. High-quality carbon brushes provide better commutation performance, good thermal conductivity, and low friction.
A high-strength magnet with a small volume, lightweight design is used for low energy consumption, strong power, and greater torque.
* Images are for illustration only; actual product may vary.
