KEMET PHBC Coils
Fe-Ni dust core coils for various applications
- Core Material: Fe-Ni dust
- Applications: DC/DC converters, noise countermeasures
- Inductor Type: Toroid
- Efficiency: Economical and efficient
Top Features:
- Fe-Ni dust core material
- Low core loss
- High saturation magnetic flux density
- Good DC superposition characteristics
A toroid is a coil of insulated wire wound on a donut-shaped form made of powdered iron. It is used as an inductor in electronic circuits, especially at low frequencies where large inductances are required. Toroids work by boosting the frequency to appropriate levels, storing energy in the form of magnetic fields. They are more economical and efficient than solenoids.
Applications: Switching power supply outlet, DC-DC converter, phase compensation, boost converter, normal mode noise solution countermeasure

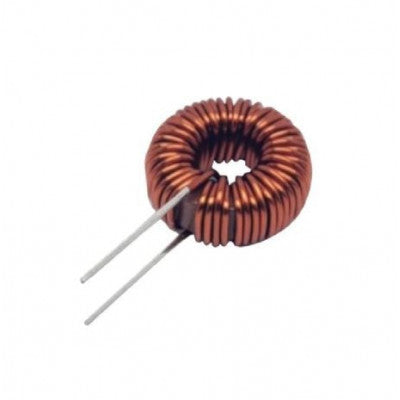

- Pack Includes: 1 x SHBC12-1R0A0051V toroid coil inductor PHBC Series (Fe-Ni)
Images are for illustration only; actual product may vary.
