SGM8552 - Dual Rail-to-Rail I/O Precision Operational Amplifier
A precision operational amplifier with low offset voltage and bias current, ideal for various applications.
- Supply Voltage: 6V
- Input Voltage: -VS to (+VS) + 0.1V
- Differential Input Voltage: -5V to 5V
- Storage Temperature Range: -65°C to +150°C
- Junction Temperature: 150°C
- Operating Temperature Range: -40°C to +125°C
- Lead Temperature Range (Soldering 10 sec): 260°C

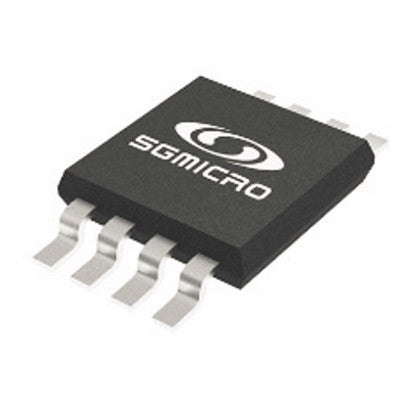

- Package Includes: 1 x SGM8552 - Dual Rail-to-Rail I/O Precision Operational Amplifier Chip MSOP-8 Package
Top Features:
- Low Offset Voltage: 20?V (MAX)
- Rail-to-Rail Input and Output Swing
- 2.5V to 5.5V Single-Supply Operation
- Voltage Gain: 145dB (TYP) at 5V
The SGM8552 is a dual rail-to-rail input and output precision operational amplifier with low input offset voltage and bias current. It operates from 2.5V to 5.5V single supply, making high-side and low-side sensing easy. This amplifier is suitable for temperature, position, and pressure sensors, medical equipment, strain gauge amplifiers, and other precision applications within the 2.5V to 5.5V range. It is designed for extended industrial/automotive temperature range of -40°C to +125°C.
Applications for the SGM8552 include temperature measurements, pressure sensors, precision current sensing, electronic scales, strain gauge amplifiers, medical instrumentation, thermocouple amplifiers, and handheld test equipment.
