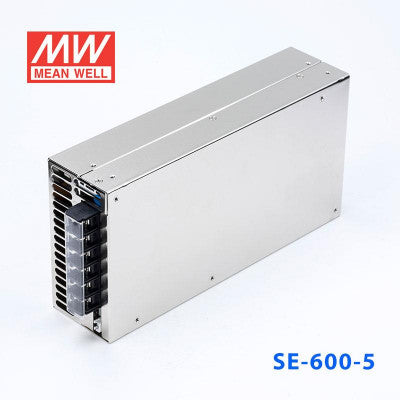

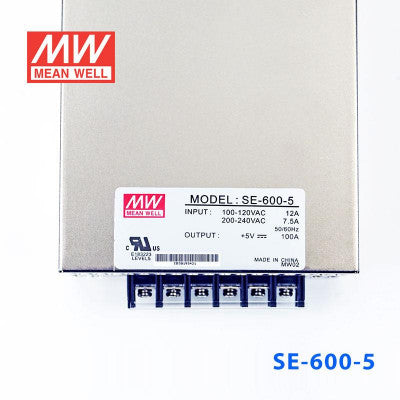

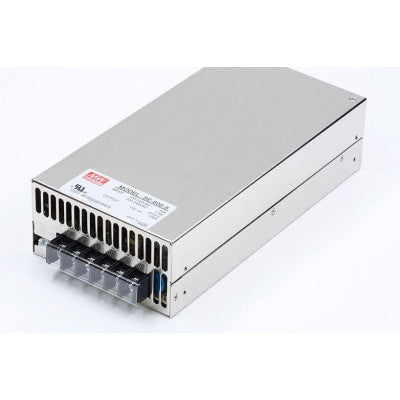

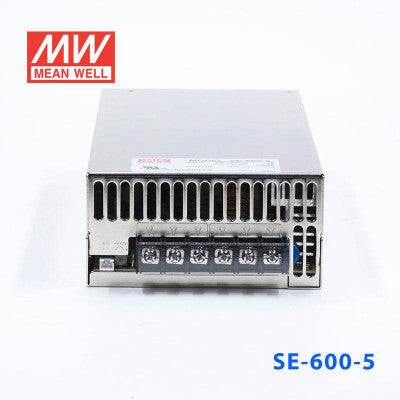

500W Enclosed SE Series Power Supply
500W enclosed power supply with standard features and a 2-year warranty
- Output Voltage: 5V
- Type: Enclosed Type
- Approx. Wattage: 500W
- Features: Standard
- Series: SE(High Power)
- Mechanical Form: Enclosed
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:

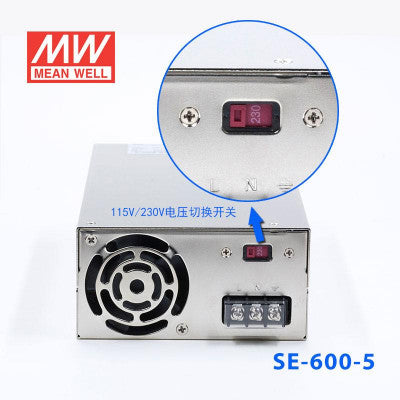

- AC input selectable by switch
- 100% full load burn-in test
- LED indicator for power on
- Built-in remote sense function
The 500W Enclosed SE Series Power Supply is a reliable solution for your power needs. With AC input selectable by switch and LED indicator for power on, this power supply offers convenience and efficiency.
- AC input voltage range: 90~132VAC / 180~264VAC selected by switch (600~1000W)
- AC inrush current (max.): Cold start, 60A at 230VAC
- DC adjustment range: ±10% rated output voltage
- Overload protection Range: 105%~125%
- Overload protection Type: Shut down o/p voltage, re-power on to recover
- Over voltage protection: 115%~145%
- Withstand voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
- Working temperature: -20~+60°C (refer to output derating curve)
- Safety standards: UL60950-1 approved
- EMC standards: Design refer to EN55022 class B
- Connection: Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)
- Dimension (LxWxH): 247x 127x 63.5
- Case No.: 926A
For more details or bulk pricing, reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.*
