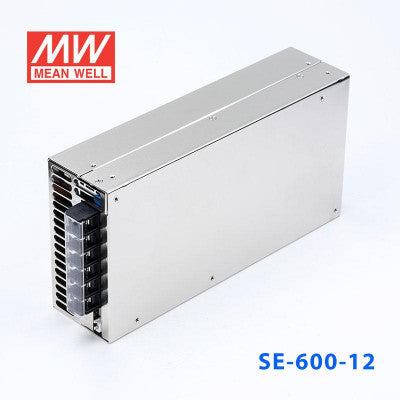

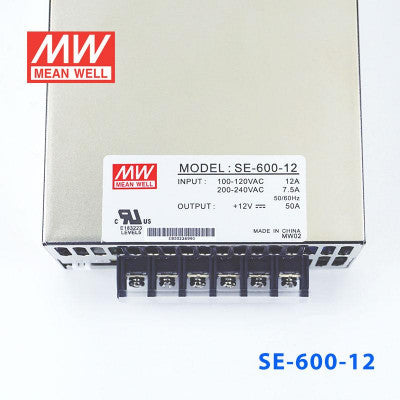

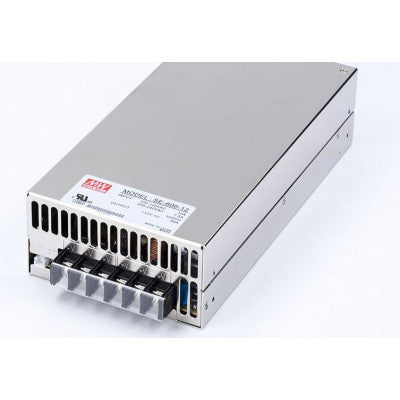

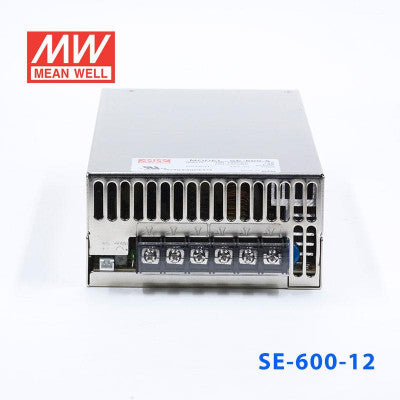

SE-600 12V 600W Enclosed Type Power Supply
A reliable 600W enclosed power supply with standard features and a 2-year warranty.
- Output Voltage: 12V
- Type: Enclosed Type
- Approx. Wattage: 600W
- Features: Standard
- Series: SE(High Power)
- Mechanical Form: Enclosed
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Key Features:

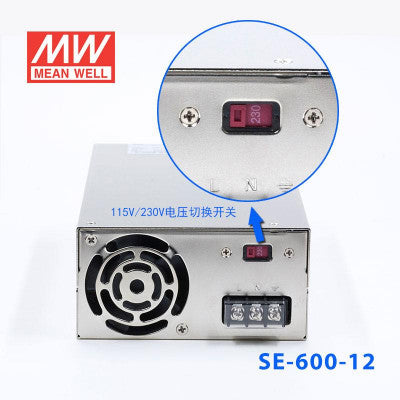

- AC input selectable by switch
- 100% full load burn-in test
- LED indicator for power on
- Built-in remote sense function
The SE-600 12V 600W Enclosed Type Power Supply is designed with protections against short circuit, overload, over voltage, and over temperature. It comes with forced air cooling by a built-in DC fan and offers a 2-year warranty for peace of mind.
- AC Input Voltage Range: 90~132VAC / 180~264VAC selected by switch (600~1000W)
- AC Inrush Current (max.): Cold start, 60A at 230VAC
- DC Adjustment Range: ±10% rated output voltage
- Overload Protection Range: 105%~125%
- Overload Protection Type: Shut down o/p voltage, re-power on to recover
- Over Voltage Protection: 115%~145%
- Withstand Voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
- Working Temperature: -20~+60°C (refer to output derating curve)
- Safety Standards: UL60950-1 approved
- EMC Standards: Design refer to EN55022 class B
- Connection: Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)
- Dimension (LxWxH): 247x127x63.5
- Case No.: 926A
For more details or bulk pricing, please reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
