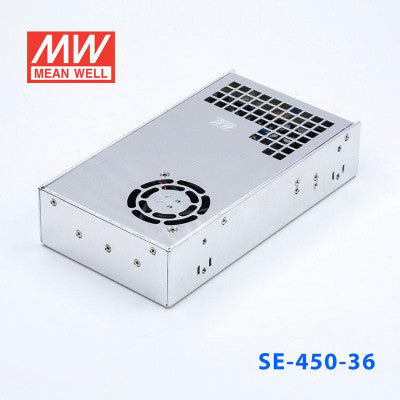

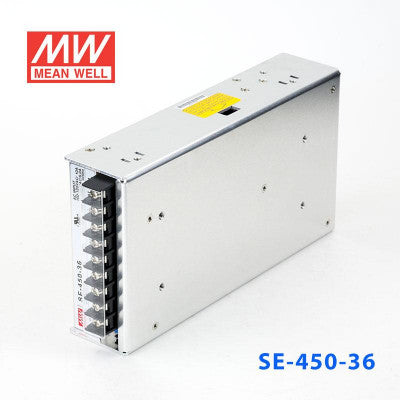

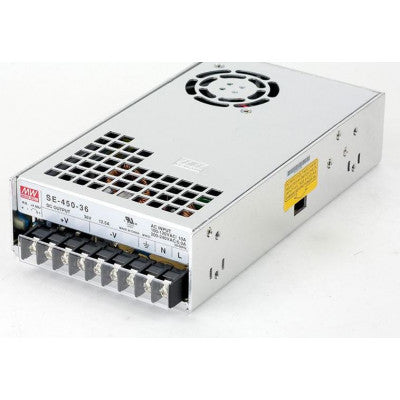

SE-450 36V Enclosed Type Power Supply
Standard 450W power supply with 2 years warranty and remote sense function.
- Output Voltage: 36V
- Type: Enclosed Type
- Approx. Wattage: 450W
- Features: Standard
- Series: SE(High Power)
- Mechanical Form: Enclosed
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:

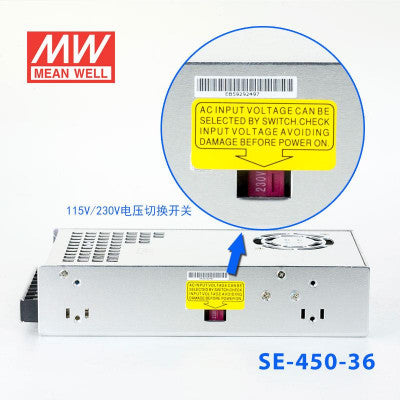

- AC input selectable by switch
- 300VAC surge input withstand
- Short circuit, Overload, Over voltage, Over temperature protection
- LED power indicator
The SE-450 36V Enclosed Type Power Supply is designed with AC input selectable by a switch and can withstand 300VAC surge input. It offers various protections including short circuit, overload, over voltage, and over temperature. The power supply also features a 100% full load burn-in test and an LED indicator for power on. Additionally, it comes with built-in remote sense function and forced air cooling by a built-in DC fan. With a 2-year warranty, this power supply provides reliable performance for your applications.
Specifications:
- AC input voltage range: 115/230VAC by switch
- AC inrush current (max.): Cold start, 55A at 230VAC
- DC adjustment range: ±10% rated output voltage
- Overload protection Range: 105%~150%
- Overload protection Type: Shut down o/p voltage, re-power on to recover
- Over voltage protection: 115%~145%
- Withstand voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC
- Working temperature: -10~+60°C (refer to output derating curve)
- Safety standards: UL60950-1
- EMC standards: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

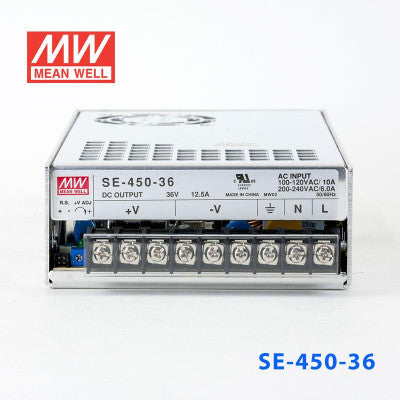

- Connection: 9P/11mm pitch terminal block with cover
- Dimension (LxWxH): 225x124x50
- Case: No.986A
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or give us a call at +91-8095406416.
*Images are for illustration only; actual product may vary.
