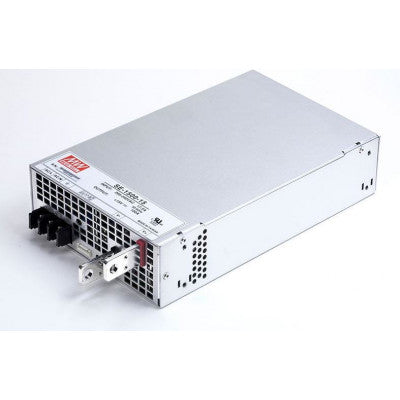

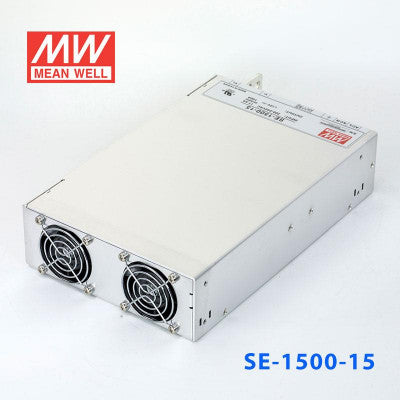

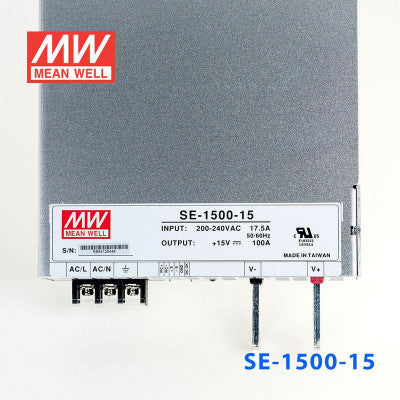

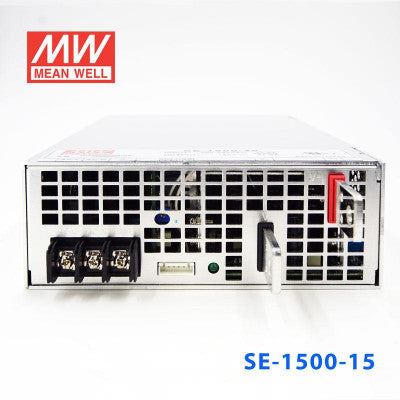

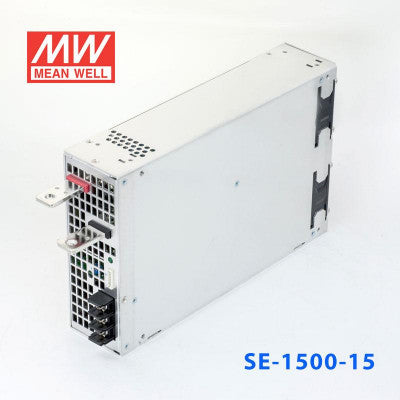

SE-1500 High Series Enclosed Type Power Supply
Reliable 1500W power supply with standard features and 2 years warranty
- Output Voltage: 15V
- Type: Enclosed Type
- Approx. Wattage: 1500W
- Features: Standard
- Series: SE (High)
- Mechanical Form: Enclosed
- Warranty: 2 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- AC input selectable by switch
- 100% full load burn-in test
- LED indicator for power on
- Built-in remote sense function
The SE-1500 High Series Enclosed Type Power Supply is designed to provide efficient and reliable power for your applications. With a 2-year warranty and standard features, this power supply offers peace of mind and functionality. The AC input is selectable by switch, and it undergoes a 100% full load burn-in test for quality assurance. It also features an LED indicator for power on and a built-in remote sense function. The power supply is equipped with forced air cooling by a built-in DC fan, ensuring optimal performance.
- AC Input Voltage Range: 180~264VAC
- AC Inrush Current (max.): Cold start, 60A at 230VAC
- DC Adjustment Range: ±10% rated output voltage
- Overload Protection Range: 105%~125%
- Overload Protection Type: Shut down o/p voltage, re-power on to recover
- Over Voltage Protection: 115%~145%
- Withstand Voltage: I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
- Working Temperature: -20~+70°C (refer to output derating curve)
Safety standards for the SE-1500 High Series Enclosed Type Power Supply include UL60950-1 approval, and EMC standards design refers to EN55022 class B. The connection is through a terminal block with cover for input and output (SE-1000/1500: copper pillars for output). The dimensions of the power supply are 278x 177.8x 63.5, with Case No. 982A.
*Images are for illustration only; actual product may vary.
