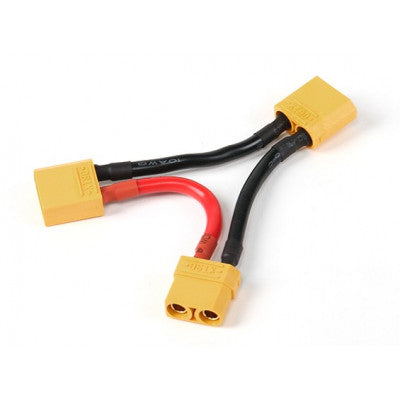

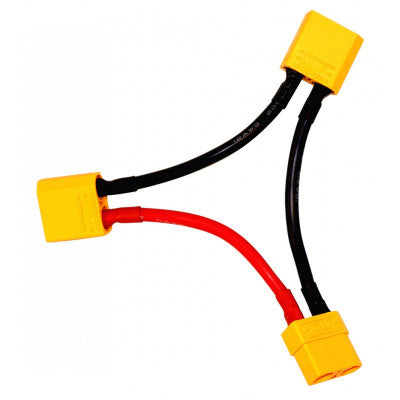

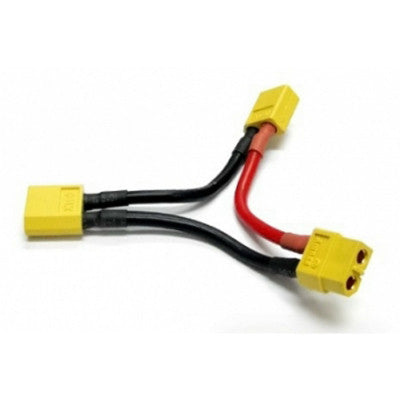

SafeConnect XT60 Harness for 2 Packs in Series
Efficiently double the total voltage and cell count with this series connector.
- Connector Type: 2 Male, 1 Female
- Connector Material: Gold Plated Connector, Nylon case
- Constant Current capacity (A): 60
- Max Current Capacity (A): 65 (30 sec)
- Cable Length (cm): 10
- Length (mm): 140
- Width (mm): 16.5
- Height (mm): 8
- Weight (gm): 20
Top Features:
- Connect two identical packs in series
- Double the total voltage
- Gold plated connectors for efficient power transfer
- Compact and lightweight design
This harness allows you to connect two identical packs in series, effectively doubling the total voltage and cell count. It comes with two female connectors and one male connector designed to connect two batteries in a series connection, providing double the combined voltage output. This is an excellent and cost-effective way to create a larger voltage pack from two matching smaller packs.
Using this harness also reduces the risk of losing an entire pack in case of cell damage due to a crash, as the loss is limited to one of the smaller packs. It's a smarter way to run larger packs. For example, connecting two 1800mAh 12V batteries using this harness would result in a 24V 1800mAh battery.

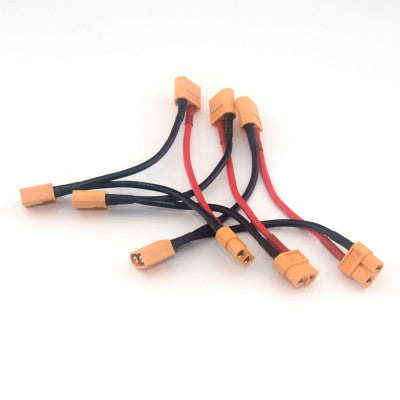

Important Note: Only use this harness with batteries and ESCs that follow the standard polarity conventions for XT60 connectors. Ensure all batteries are fully charged before making a connection. Do not charge the batteries while they are connected. Please note that the connector is available in two different variants (XT60 and XT60H), and we will ship it randomly.
Package Includes: 1 x SafeConnect XT60 Harness for 2 Packs in Series.
Images are for illustration only; actual product may vary.
