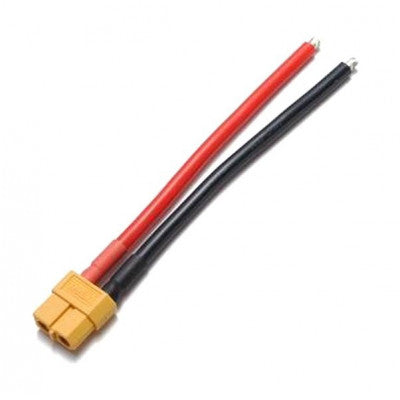

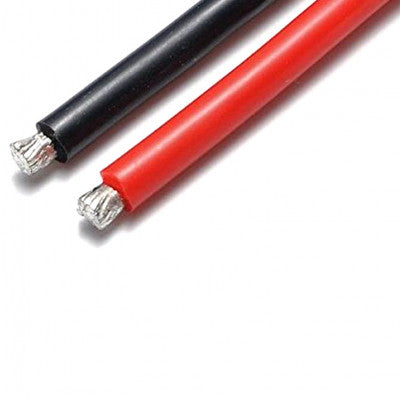

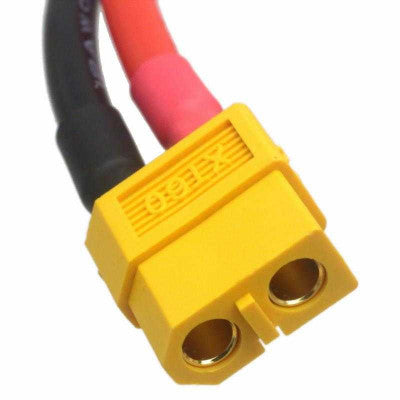

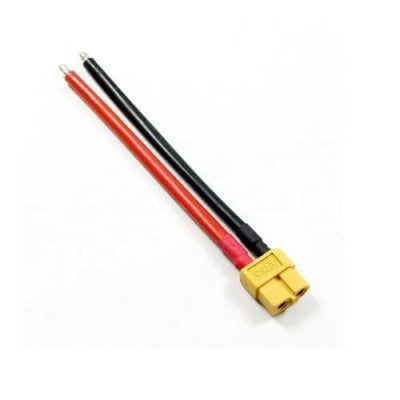

XT60 Female with 14 AWG Silicon Wire 10cm (1pcs/bag)
Perfect for connecting batteries and ESCs with high power applications.
- Brand: Amass
- Gender: Female
- Rated Operating Voltage (VDC): 500
- Current Handling Capacity (A): 60
- No. of Contact Points: 2
- Connector Type: XT60 Female
- Contact Material: Brass
- Contact Plating: Gold flash
- Metal Connector Size (mm): 4.5
- Operating Temperature Range (C): -20 to 120
- Flammability Rating: UL94V-0
- Color: Connector: Yellow, Wire: Red & Black
- Weight (gm): 18
- Allowed Wire Size (AWG): 16 ~ 14
Features:
- Connector Type: XT60 Female
- High-Temp Nylon Material of Connector
- High-Quality Connector
- Designed for heavy-duty
- High Power Application
The XT60 Female with 14 AWG Silicon Wire 10cm (1pcs/bag) is widely used for connecting batteries and ESCs. It simplifies the connection between the battery and motor, especially for high-power applications involving larger motors and controllers like our high-power motor drivers and Simple Motor Controllers.
Capable of connecting with XT60 Male Connector, these heavy-duty cables are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of the generic XT60 prevents reverse polarity, ensuring a super-solid connection when plugged in.
These XT60 connectors are ideal for high-power brushless and brushed ESCs and motors commonly used in RC helicopters, quadcopters, planes, and cars, providing reliable high amp connections.
Note: The connector is available in two different variants (XT60 Female and XT60H-F Female), and we will ship it randomly.
* Images are for illustration only; actual product may vary.
