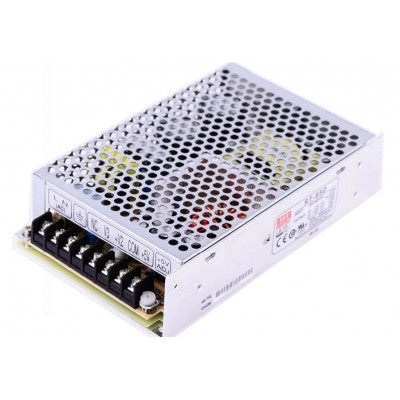

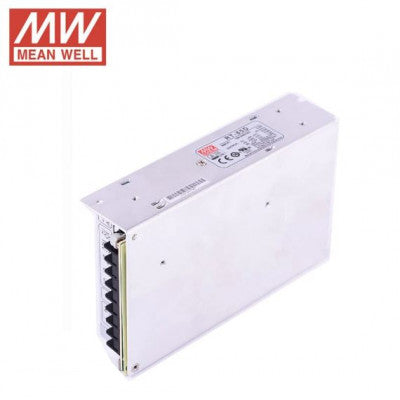

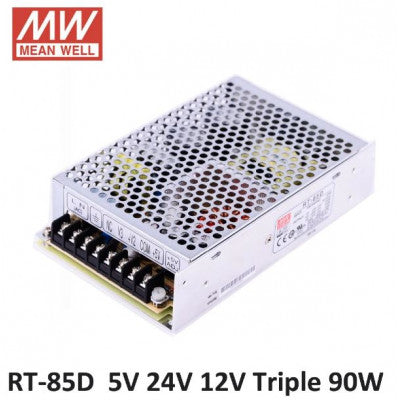

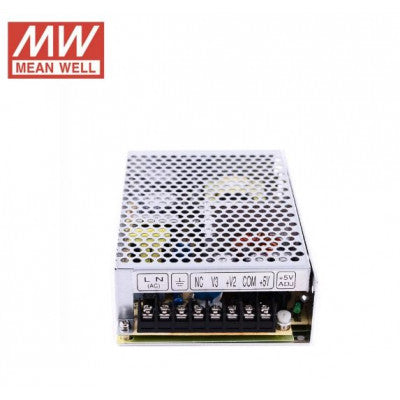

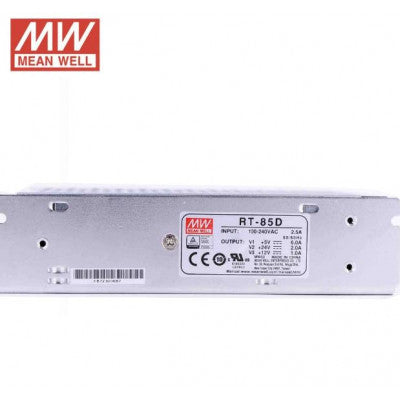

MEAN WELL Triple Output Enclosed Power Supply RT-85D
Reliable 90W power supply with 3 output channels and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 24 VDC
- Output Voltage-Channel 3: 12 VDC
- Output Current-Channel 1: 6A
- Output Current-Channel 2: 2A
- Output Current-Channel 3: 1A
- Number of Outputs: 3
- Output Power: 90 W
- Type: Enclosed Type
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- LED indicator for power on
- High efficiency and reliability
The MEAN WELL RT-85D is an enclosed triple output power supply with reliable performance. It features an output voltage of 5VDC, 24VDC, and 12VDC across its three channels, with output currents of 6A, 2A, and 1A respectively. The unit has a total output power of 90W and comes with a 3-year warranty for added peace of mind.
With a compact mechanical form factor and high operating temperature range of up to 70°C, this power supply is suitable for a variety of commercial applications. It also boasts protections against short circuit, overload, and over voltage, ensuring the safety of your connected devices.
- Manufacturer: MEAN WELL
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Industry: Commercial
- Mounting Style: Chassis
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-85
For more detailed technical information, you can refer to the related documents such as the RT-85 Datasheet, Test Report, and various certificates including CE, UL, CB, TUV, and EMC.
*Images are for illustration only; actual product may vary.
