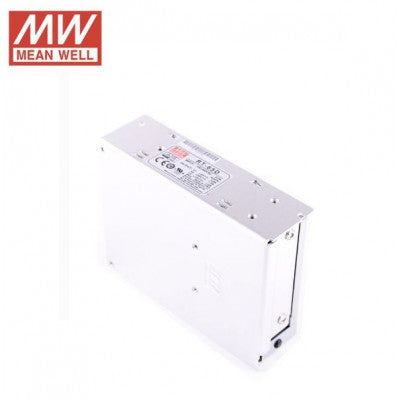

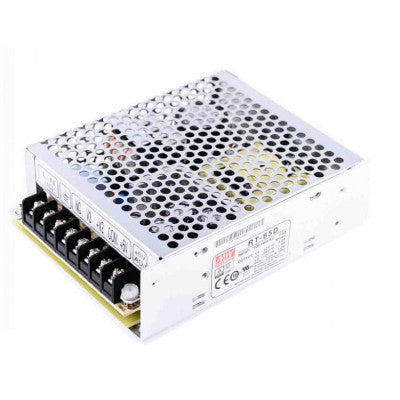

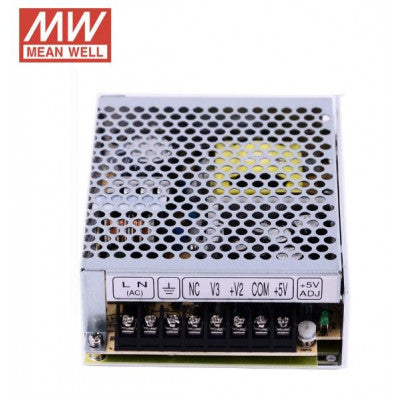

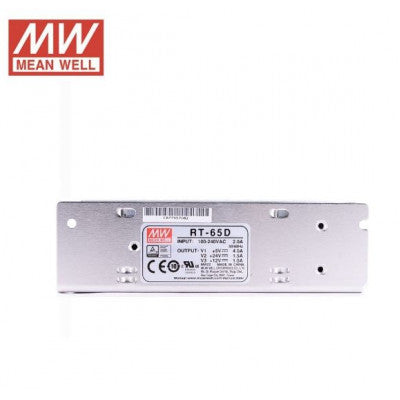

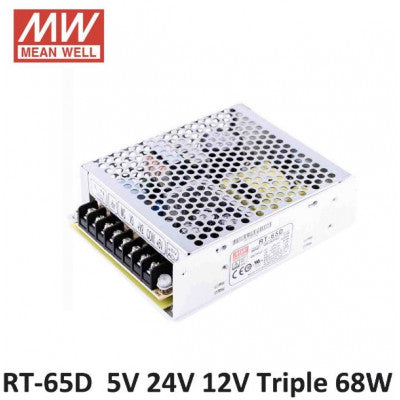

MEAN WELL Triple Output Enclosed Power Supply
Reliable 68W power supply with 3 output channels and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 24 VDC
- Output Voltage-Channel 3: 12 VDC
- Output Current-Channel 1: 4A
- Output Current-Channel 2: 1.5A
- Output Current-Channel 3: 1A
- Number of Outputs: 3 Output
- Output Power: 68 W
- Type: Enclosed Type
- Features: Standard
- Series: RT (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- LED indicator for power on
- High efficiency and reliability
The MEAN WELL Triple Output Enclosed Power Supply is a reliable solution with an output power of 68W distributed across 3 channels. It features a standard design from the RT series, ensuring longevity and performance. With a 3-year warranty, you can trust this power supply for your needs.
Specifications:
- Manufacturer: MEAN WELL
- Input Current: 1.2A/230VAC, 2A/115VAC
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Protection: Short circuit / Overload / Over voltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 129 mm
- Width: 98 mm
- Height: 38 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-65
- Model: RT-65D
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 440 g
Related Documents:
- RT-65 Datasheet
- RT-65D Test Report
- CE Certificate (RT-65)
- UL Certificate (RT-65)
- CB Certificate (RT-65)
- TUV Certificate (RT-65)
- EMC Certificate (RT-65)
*Images are for illustration only; actual product may vary.
