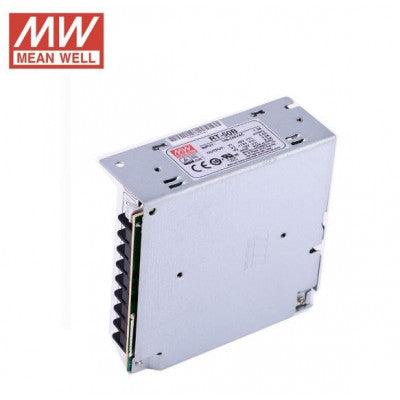

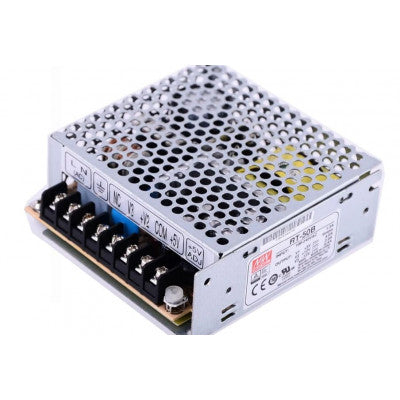

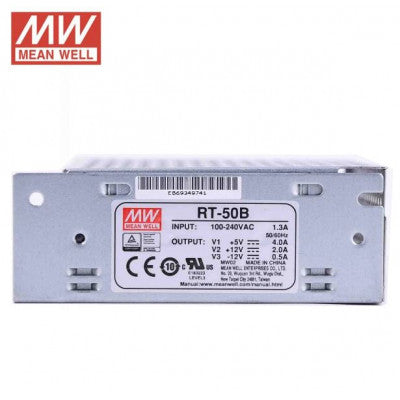

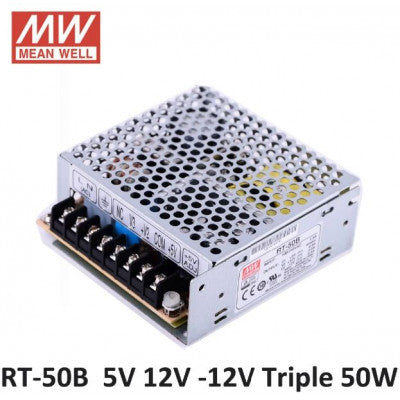

MEAN WELL Triple Output Enclosed Type Power Supply RT-50B
Reliable 50W power supply with 3 output channels and 3-year warranty
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Voltage-Channel 3: -12 VDC
- Output Current-Channel 1: 4A
- Output Current-Channel 2: 2A
- Output Current-Channel 3: 0.5A
- Number of Outputs: 3
- Output Power: 50W
- Type: Enclosed Type
- Features: Standard
- Series: RT (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Top Features:
- Universal AC input
- Short circuit, overload, overvoltage protections
- LED power indicator
- High efficiency and reliability
The MEAN WELL RT-50B is a reliable triple output power supply with an enclosed design. It offers output voltages of 5VDC, 12VDC, and -12VDC, making it suitable for various applications. With a 3-year warranty and high efficiency, this power supply ensures long-term performance.
Specifications:
- Manufacturer: MEAN WELL
- Input Current: 0.8A/230VAC, 1.3A/115VAC
- Operating Temperature: -25 to +70 DEG CEL
- Voltage Adjustable Range: 4.75 to 5.5V
- Frequency: 47 to 63Hz
- Protection: Short circuit, overload, overvoltage
- Industry: Commercial
- Mounting Style: Chassis
- Length: 99 mm
- Width: 97 mm
- Height: 36 mm
- Safety Standards: UL62368-1, TUV EN62368-1 approved
- Series: RT-50
- Model: RT-50B
- Brand: MEAN WELL
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
- Unit Weight: 410 g
Related Documents:
- RT-50 Datasheet
- RT-50B Test Report
- CE Certificate (RT-50)
- UL Certificate (RT-50)
- CB Certificate (RT-50)
- TUV Certificate (RT-50)
- EMC Certificate (RT-50)
*Images are for illustration only; actual product may vary.
