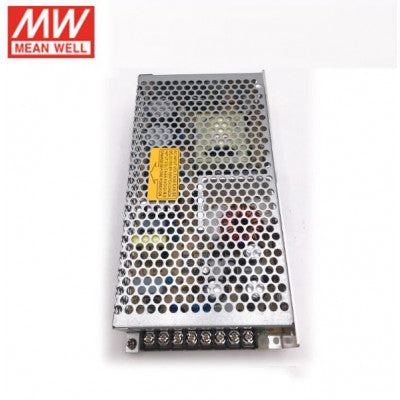

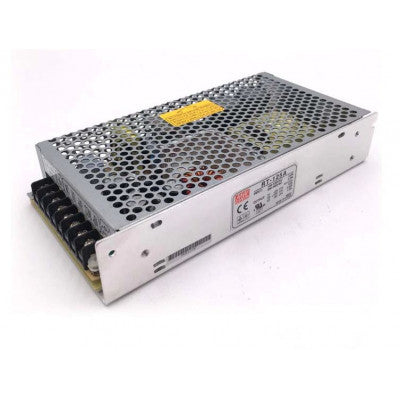

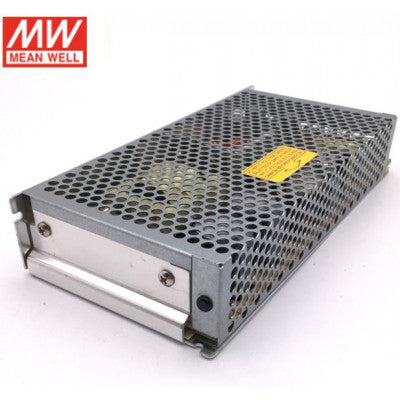

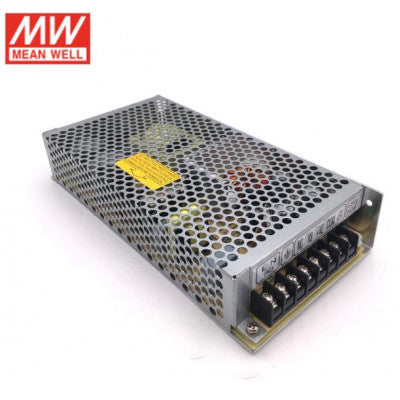

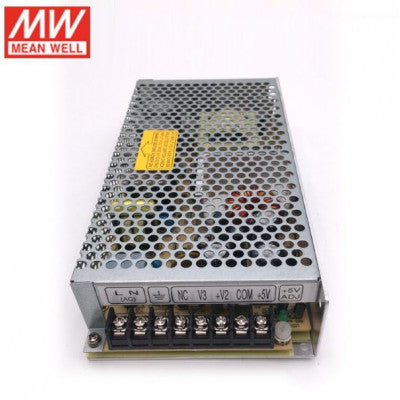

MEAN WELL Triple Output Power Supply RT-125A
Reliable triple output power supply with 131W power and 3-year warranty.
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 12 VDC
- Output Voltage-Channel 3: -5 VDC
- Output Current-Channel 1: 12A
- Output Current-Channel 2: 5.5A
- Output Current-Channel 3: 1A
- Number of Outputs: 3
- Output Power: 131 W
- Type: Enclosed Type
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 88 VAC to 132 VAC / 176 VAC to 264 VAC (Selected by Switch), 125 VDC to 373 VDC
Top Features:
- Universal AC input / Full range
- Short circuit / Overload / Over voltage protections
- Cooling by free air convection
- LED indicator for power on
The MEAN WELL RT-125A is a reliable triple output power supply with a total power of 131W. It features an enclosed type design and comes with a 3-year warranty. The input voltage ranges from 88 VAC to 132 VAC or 176 VAC to 264 VAC, and 125 VDC to 373 VDC.
It offers high efficiency, long life, and high reliability. The power supply is designed with protections against short circuit, overload, and overvoltage. It operates at a high temperature of up to 70°C and has undergone a 100% full load burn-in test for quality assurance.
- Manufacturer: MEAN WELL
- Operating Temperature: -25 TO +70 DEG CEL
- Voltage Adjustable Range: 4.75 ~ 5.5V
- Frequency: 47 TO 63Hz
- Mounting Style: Chassis
- Length: 199 mm
- Width: 98 mm
- Height: 38 mm
