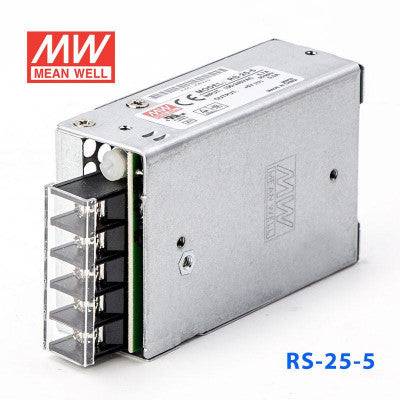

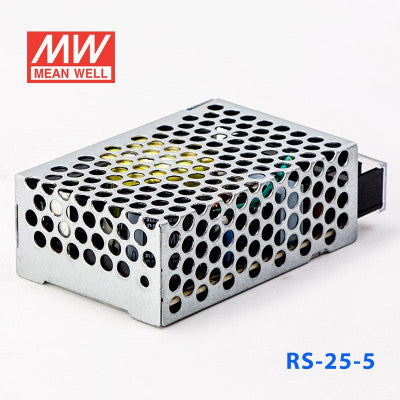

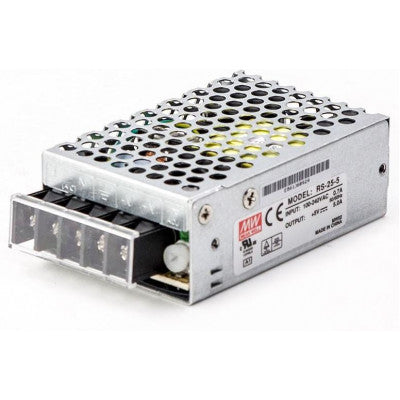

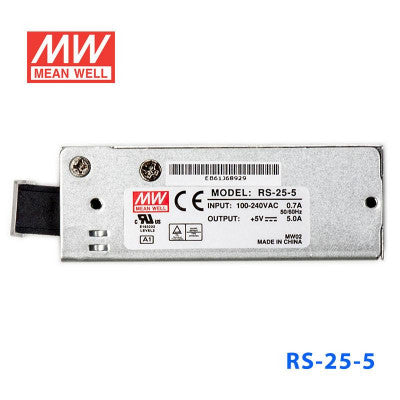

RS-25 Enclosed Type 5V Power Supply
High-efficiency power supply with 3-year warranty and multiple protections
- Output Voltage: 5V
- Type: Enclosed Type
- Approx. Wattage: 25W
- Features: Standard
- Series: G3 (Reliable)
- Mechanical Form: Enclosed
- Warranty: 3 Years Warranty
- IP Level: Non-Waterproof
- Input Voltage: 100-240V auto-select
Top Features:
- No load power consumption less than 0.5W
- Protections: Short circuit, Overload, Over voltage, Over Temp.
- High efficiency and long life electrolytic capacitors
- LED indicator for power on
This RS-25 power supply is designed for heavy industry applications, meeting EMS EN50082-2/EN61000-6-2 standards. The miniature size and high power density make it suitable for critical applications. With 3 years warranty, it offers high reliability and a wide range of safety certifications.
- AC input voltage range: 88~264VAC, 125~373VDC
- DC adjustment range: ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
- Overload protection: 110%~180%
- Over voltage protection: 115%~135% rated output voltage, hiccup mode, auto-recovery
- Working temperature: -20~+70°C
- Vibration: 10~500Hz, 5G

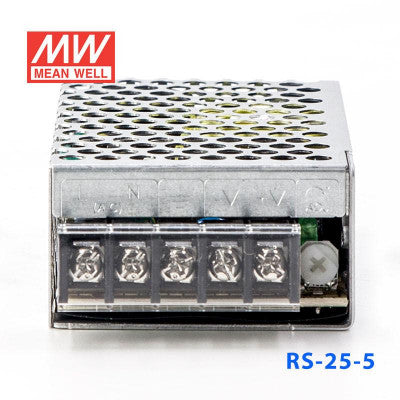

With safety standards UL60950-1 and TUV EN60950-1 approved, this power supply ensures reliable performance and durability. It comes with terminal block connections for input and output, with a compact dimension of 78x51x28 mm.
Related Documents:
- RS-25 Datasheet
- RS-25-5 Test Report
- CE Certificate (RS-25)
- UL Certificate (RS-25)
- CB Certificate (RS-25)
- TUV Certificate (RS-25)
- EMC Certificate (RS-25)
* Images are for illustration only; actual product may vary.
