Red Two-Wire 0.56 Inch DC5V-120V DC Digital Display Voltmeter
Simple two-wire connection with reverse connection protection and automatic decimal point adjustment.
- Working Voltage Range: 0-200VDC
- Measurement Precision: 0.1V below 100V, 1V above 100V
- Material: ABS plastic frame

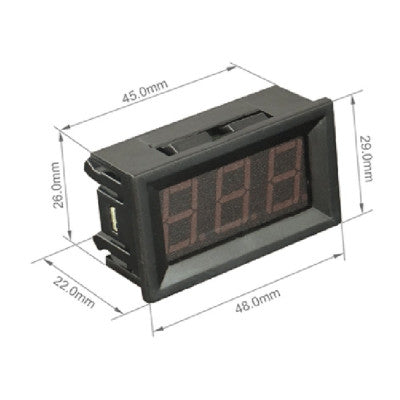

- Installation: Fits 1.5-3mm thickness rectangular holes
- Operating Voltage: Low
- Reverse Protection: Yes
- High Pressure: 132V
Features:
- Wide voltage range: 5-120V DC
- Reverse connection protection
- Automatic decimal point adjustment
- ABS plastic frame for easy installation

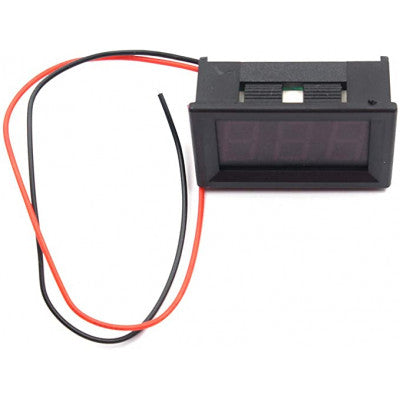

The wiring of this voltmeter is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn. This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 0-200VDC. In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference in the measured voltage.
This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes. Note: Consider the 1V voltage drop at the voltmeter itself, as we observed it at Robulabs while testing this Voltmeter.
* Images are for illustration only; actual product may vary.
